Industrial-Axial-Fan TTW 25000 S Trotec

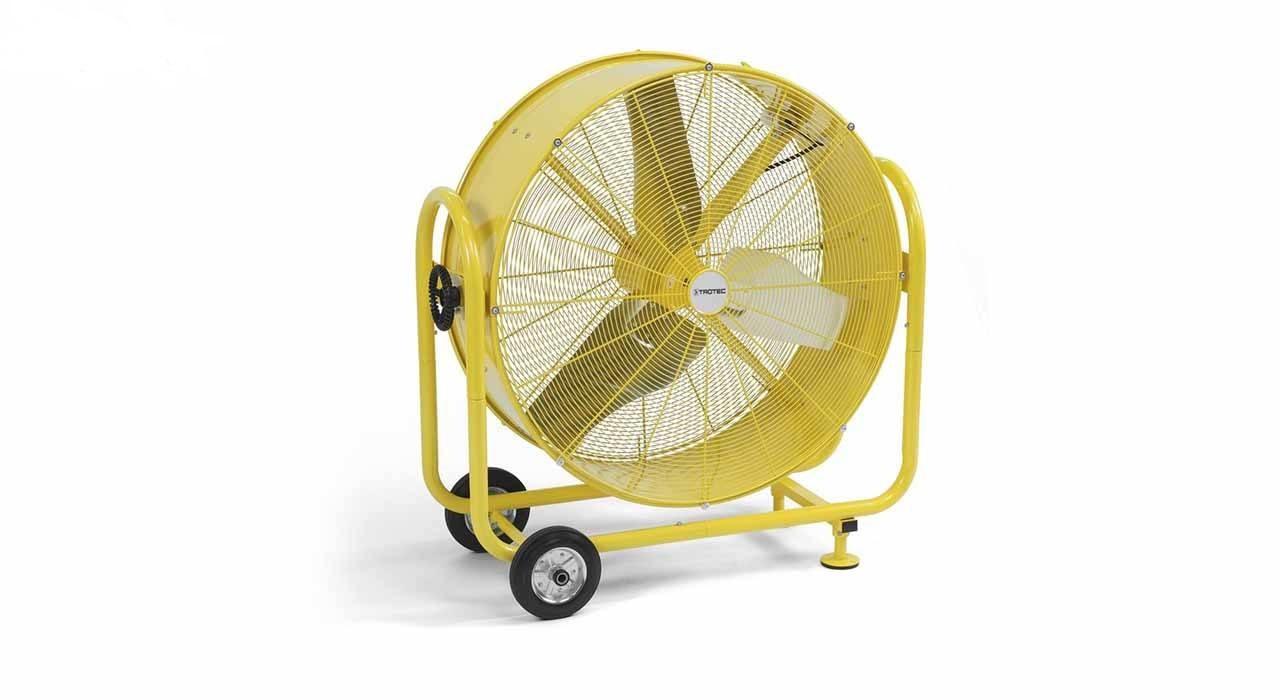

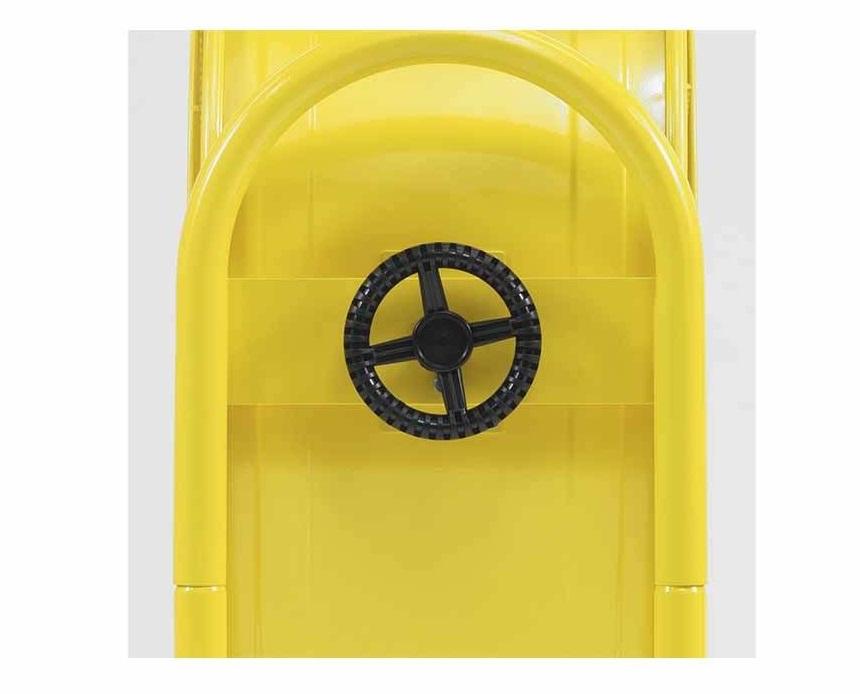

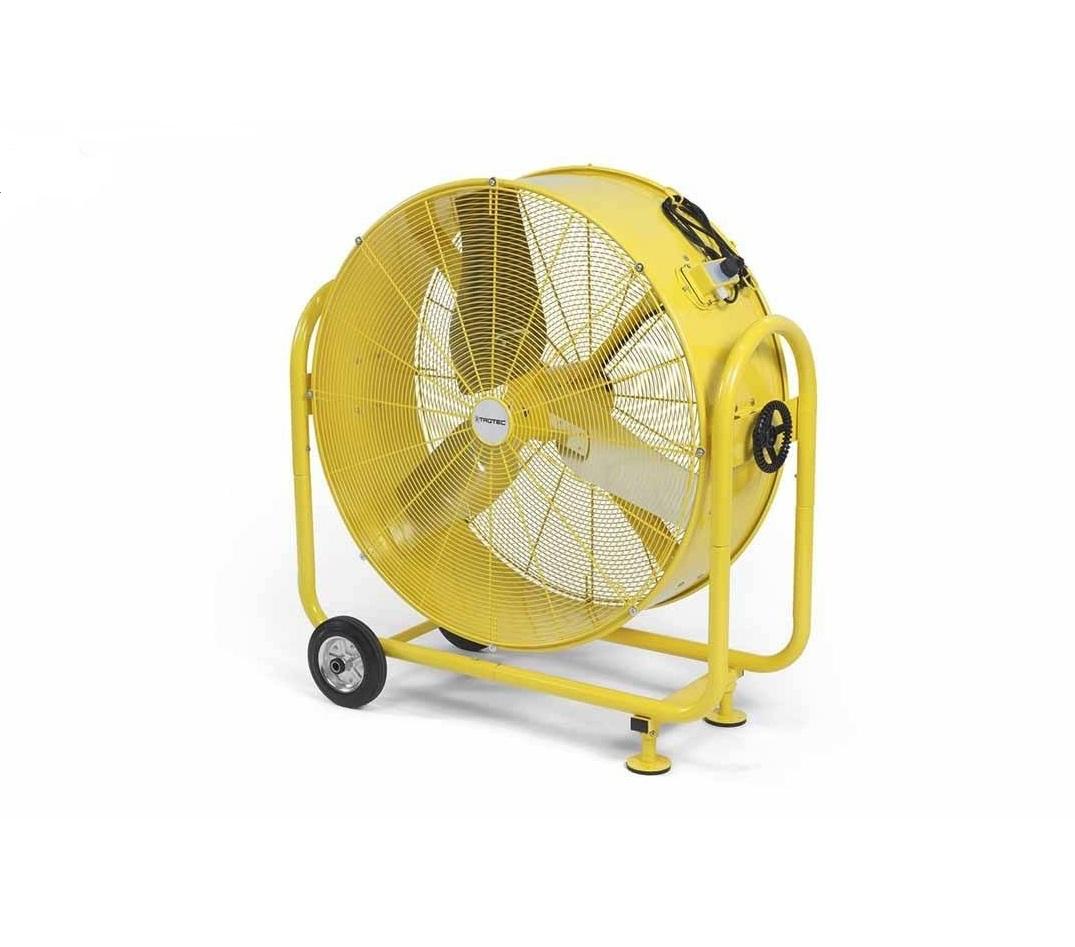

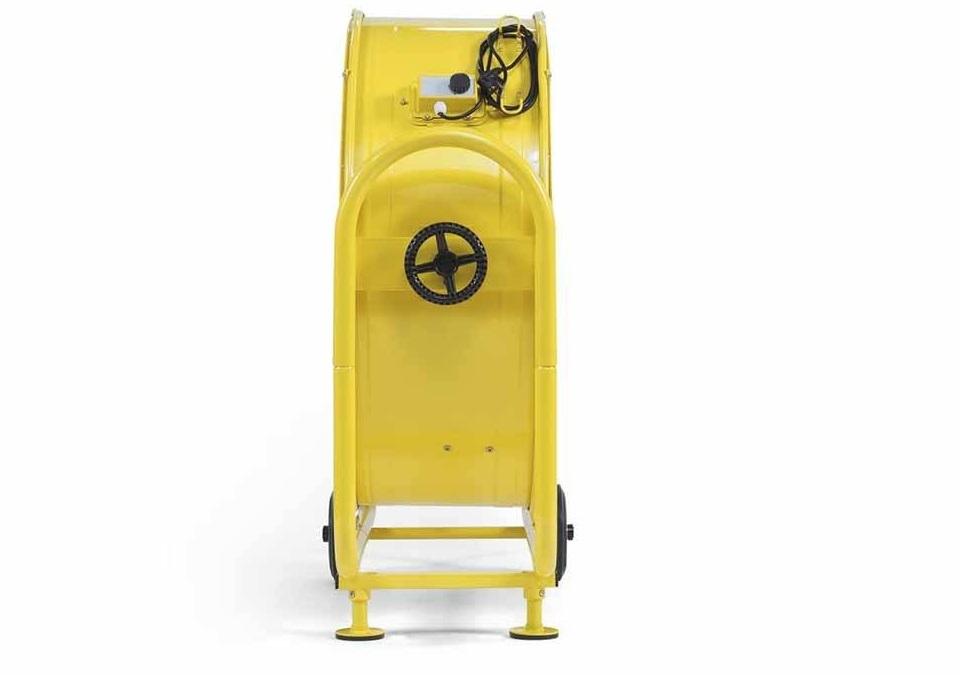

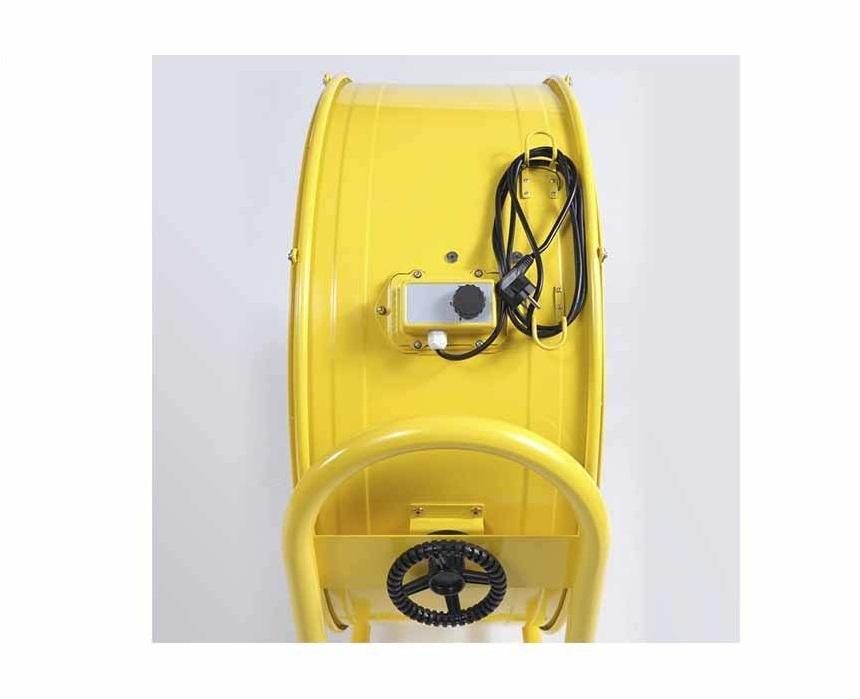

High product air flow rate is adjustable in two stages. In the first stage, the output air volume is 21,000 cubic meters per hour, which produces only 65 dB, and in the second stage, the output air volume reaches 27,600 cubic meters per hour, producing only 75 dB. In addition to adjusting the outlet air relative to the required air flow rate, the device angle can also be adjusted vertically to adjust the wind direction from horizontal. The Trotek TTW 25000 S industrial blower fan body is 1040 * 525 * 1140 mm and weighs 44 kg made of galvanized steel and has two wheels underneath for easy handling. For protection and safety on both sides of the fan a metal grid plate is used, and the device also has a 16 amp shield. Trotech industrial fan fan TTW 25000 S high-speed airflow is able to ventilate indoor and outdoor areas including odor removal, air conditioning, air circulation in warehouses, auxiliary heating, cooling and more .

Specifications:

- Adjustable air flow rate

- Outlet air volume at first stage: 21,000 m3 / h

- Second stage outlet air volume: 27,600 m3 / h

- Power in the first phase: 0.52 kW

- Secondary power: 0.65 kW

- First stage audio: 65 dB

- Second stage volume: 75 dB

- Input voltage: 230 volts

- Power consumption: 0.65 kW

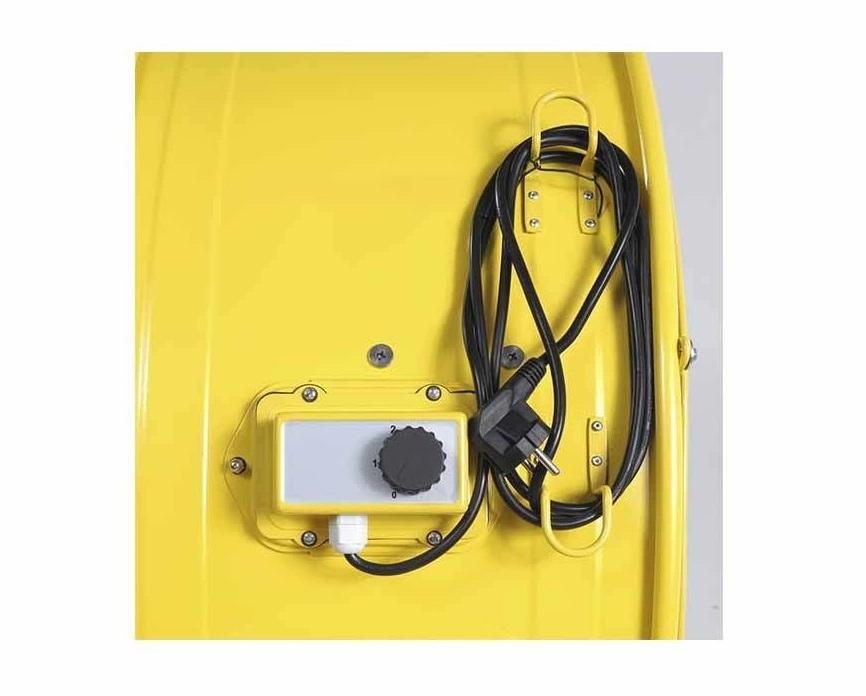

- CEE 7/7 power socket

- 16 amp protector

- Removable: Capable

- One year warranty on replacement of Arico parts
