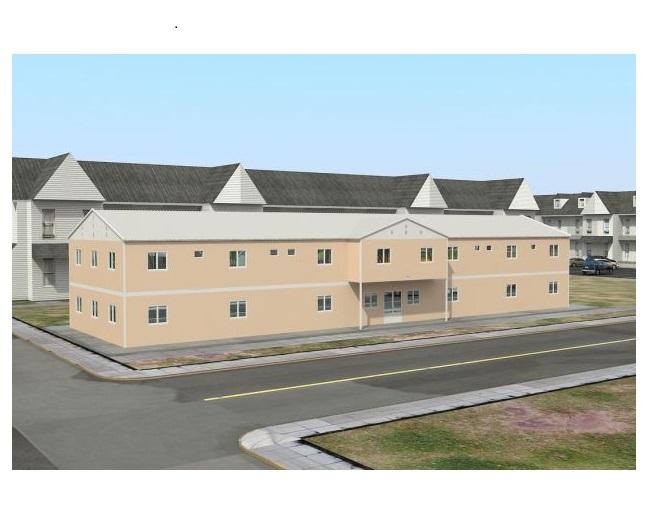

Prefabricated recreation center 793 square meters Karmod

Today, the rise of environmental issues has had an impact on the construction industry. Waste generation during construction projects has always been the focus of environmental activists, so that in all stages of construction projects, large and small, the environment is strongly affected. Prefabricated and prefabricated houses can not be built more than two floors. If one wants to build more than two floors, one has to take many measures and prerequisites. Given that the use of prefabricated structures is very widespread in today's world and is used in various industries, the following can be mentioned as the advantages of prefabricated structures:

Save installation time and build process
Construction of each precursor by its own workers, which increases the quality of work and saves time
Avoid wasting time
Reduce the amount of work that needs to be done at the construction site
Dividing the structure of a structure into prefabricated structures for ease of work
Prevent the transfer of workers to the construction site
Availability of necessary tools and equipment in the factory for more accurate construction of prefabricated structures
Ability to reuse some prefabricated structures
Due to the fact that the construction of prefabricated structures is done in factories, reducing the effects of environment and climate in the production of prefabricated structures
Reduce the cost of manufacturing processes such as cutting, welding and… on-site installation
Improve quality on site
More quality and accuracy in the construction of decorative prefabricated structures
The vitality of prefabricated structures in the success of construction projects such as bridges and…
Increase safety during the manufacturing and installation process
Environmental compatibility
Extensive use of precursors in the assembly of aircraft and spacecraft
No waste of resources and less energy consumption in the production and use of prefabricated structures

Product technical specifications:

Earthquake conditions: (first seismic zone) Effective ground acceleration coefficient: Ao = 0,40

Climatic conditions: Nazar products are made on the third climatic zone.

Snow load: 75 Kg / m2 depending on the place of assembly.

Wind speed: 80 km / h (stabilized on the ground)

Exterior wall thermal insulation coefficient: (K: 0.45 Kcal / m²hC (K: 0,53 W / m² K

Internal wall thermal insulation coefficient :( K: 0.44 Kcal / m²hC K: 0,51 W / m² K)

Light steel materials: Erdemir 1311, (ST-37) Standard DIN EN 10147-00, produced from galvanized steel with zinc coating.

Betopan: Specific weight about: حدود 1300 kg / m³ - Refractory (B1 DIN 4102 Part 1) Heat transfer coefficient: (λ10˚C dry)

Chassis bearing capacity: 200 kg / m² (in two-storey buildings) (calculated according to T.S 498 e)

Roof thermal insulation capacity: 200 kg / m² (in two-storey buildings) (calculated according to T.S 498 e)
