Carbon fibers Clinic Beton Iran

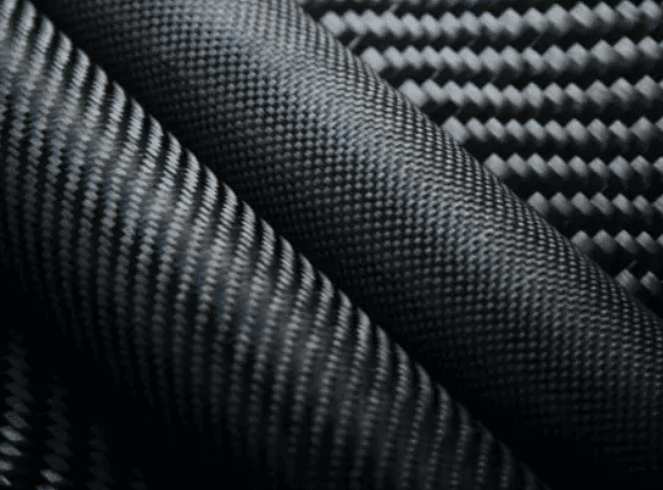

It is a lightweight carbon fiber with indirect textures for connecting to dry surfaces.

applications

In order to strengthen reinforced concrete, brick and wooden structures against tensile and shear loads due to:

• Increasing the seismic performance of stone walls
• Replacement of installed (destroyed) armatures.
• Endurance and flexibility of columns
• Increasing the carrying capacity of building elements
• Change in construction costs
• Fixing structural design defects
• Earthquake movements
• Improved service
• Structural improvement according to existing standards

Features and benefits

• Produced with weft fibers that lead to texture stability (thermal process)
• Multipurpose use for any type of retrofitting
• Flexibility of geometric surfaces (beams, columns, chimneys, walls, silos, pipes, etc.)
• The texture is available in different widths for more favorable uses.
• Low density for minimal extra weight
• Compared to traditional techniques, it is much more economical.

Approval of standards

IBDIM AT/2003-04-336

Product Information

Type of fibers: carbon fibers with medium endurance

Baft building

Fiber direction: 0˚90 (straight)

Wire: carbon fiber (98% of total weight)

Weft: thermoplastic heating fibers (2% of total weight)

Terms of storage and expiration

2 years from date when stored in original, unopened and undamaged condition and packaging, in a dry environment between 5˚C and 35˚C away from direct sunlight.

Technical Information

Weight: 200g/m2 ± 10g/m2

Texture design diameter: 0.111mm (according to the total amount of carbon)

Fiber density: 1.79 g/m3

Physical/mechanical properties

Specifications :

Tensile strength 3,900 N/mm2 (apparent)

E-tensile factor 230,000 N/mm2 (apparent)

Fracture extension 1.5% (apparent)

Diameter: 0.9 mm per layer

Layer specifications

• Final load 320 KN/M width in each layer (in the diameter of the normal layer 9mm)
• Tensile coefficient 0 KN/mm2 (based on the diameter of the normal layer 0.9mm)

tip :

• The above values are normal and indicative.
• The characteristics of the layer obtained from the tensile test depend on the impregnated resin and the type of tensile test process.
• Use material reducing factors according to relevant standards.

Designing

Design method: This value depends on the type of loading and should be adapted according to the relevant design standards.

System information / system structure:

• As described, the appearance of the system should completely follow the above and not change.
• Concrete lining
• Impregnated/layered resin
• Structural reinforcing fabric

For more information and details on resin properties, texture and general information, refer to the MTOBOND P1800 data sheet.

How to use:

Depending on the level of roughness and unevenness of the bottom layer:

- Applying the first layer containing the primer:
~0.7-1.2kg/m2

- Impregnation of subsequent layers: ~0.5kg/m2

The quality of the bottom layer

• Special needs
• Minimum tensile strength of the bottom layer
• 0 n/mm2 or as determined according to the retrofit plan.

Tips on how to use/restrictions

• This product can only be used by experienced professionals. The minimum radius required for use around corners is more than 20 mm. (>20mm) perhaps smoothing and polishing the corners with a mortar in the direction of the fibers, the overlap of the fabric should be at least 100mm.
• For side-by-side use, no longitudinal overlap in weft direction is required. The overlap of additional layers should be distributed around the column.
• This strengthening is structural in nature, and when selecting contractors, care should be taken to ensure that suitable experienced people are selected for this purpose.
• The texture (fabric) can be cut using a razor knife or special scissors. Never fold the fabric.
