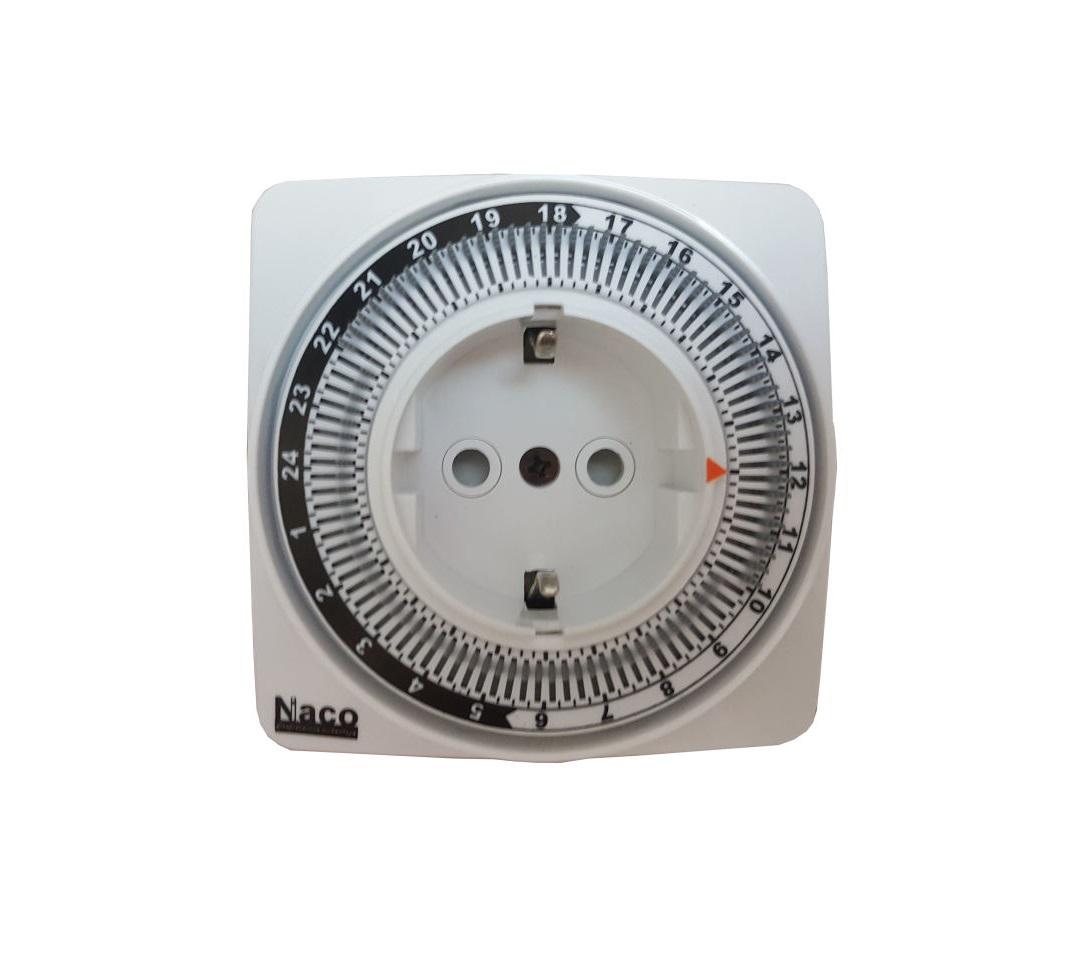

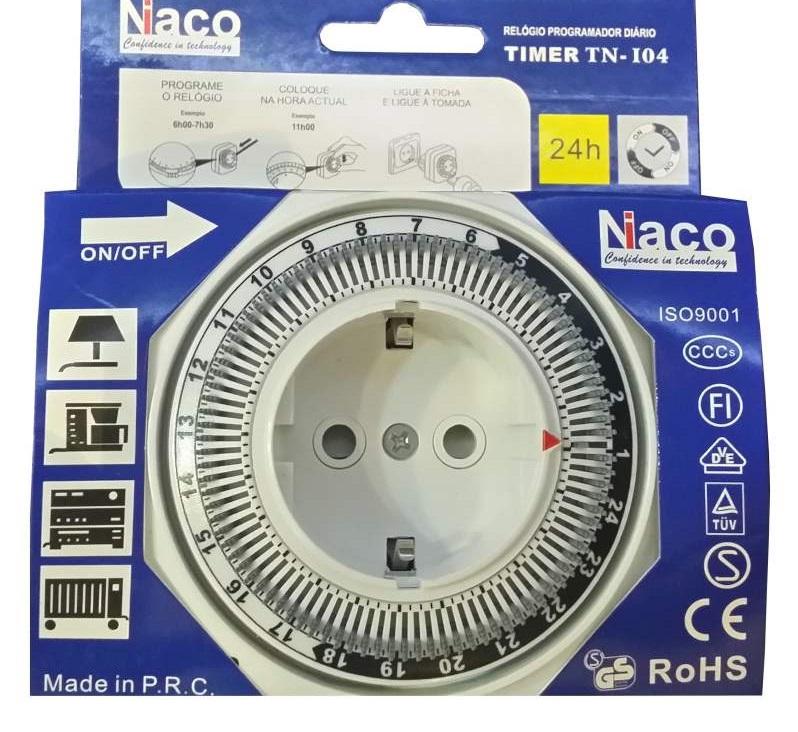

Timer TN104 Niaco

Timer or time relay is a key set consisting of a series of open and closed contacts. The mechanism of operation of the timers is that by connecting the power supply to its power supply, it operates on an arrangement that operates after a specified time and its internal contacts change, such that the contacts The timer is used to design command circuits that require timing. In this type of circuits (automatic control), timers have the task of controlling the circuit for a specified period of time. Based on their type of performance they have different modes of work which can be divided into four categories D: - Power On Delay Mode: After the input command is connected, the timer applies the output signal according to the set time.- Power Off Delay mode: After the input command is disconnected, Output is interrupted by a time delay. - Flicker mode or flashing: After the input command is connected, the output is alternately interrupted and connected for a specified period of time. - Interval mode: After the input command is connected, the timer outputs for a specified time. Disconnect and disconnect after this time. Easy to install and use timer. First plug the timer plug into the socket and then plug the stand plug into the timer inlet. How to set the time interval for the lamps to be lit at night (it should be noted that for African violets the lamps must be lit 12 hours a day): For example, you want the lamps to stand by 8 am Up to 8 nights, and the rest of the day and night, the lamps stay off and this is repeated regularly. To do this, first put the needles out at 8 to 20 o'clock and leave the rest of the needles inside. There is a red arrow that you have to rotate the center of the timer clockwise to get the actual number of the clock in front of that flash, for example, if you do this at 10pm, you have to center the timer clockwise. Rotate to place the number 22 against the red arrow. There is also a key on the side wall of the timer that must be in timer mode. In cases where you want to temporarily turn the lamps on for more than the set timer, you do not need to change the needle settings, just by switching this key to I, switching the timer to the direct plug mode again. By returning this key to the timer status, the timer function will be activated.
