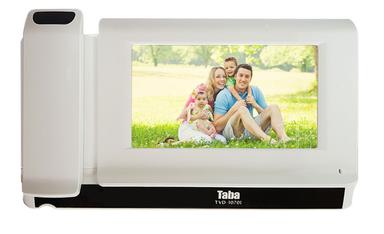

Video Door Phone 1024 TABA

With the advancement of science and technology in today's world, there is no news of old fuss and running to open the door.

Communication systems, or iPhones, have come into our daily lives to help us, like other technologies, make our lives easier.

Communication systems called video iPhones complement the previous generation audio iPhones. The person entering the building or even a company or factory has to use this device to establish and start his entry.

This new device can not only transmit sound, but also transmit the image in good quality to the monitor inside the building. These video iPhones usually have additional features such as audio and video recording that the user can use if necessary.

Video iPhones are available in either color or black and white.

The main components of Video iPhone are:

Unlock the front panel, earphone or monitor, power supply and door lock

It is interesting to know that the panels are available in black and white and color. The main parts of the panel include:

1- The metal plate of the "panel" is made of aluminum alloy and rubber is placed around it to prevent water penetration.

2- Lens protective glass: In order to reduce the effect of sunlight on the lens, this glass has been installed.

3- iPhone camera: This camera is responsible for receiving images in two types of color and black and white.

4 infrared LEDs: This feature allows you to see a good image at night.

5- Speaker for sound playback

6- Knob to call the number of floors

7- Microphone to transmit sound to the phone

8- Camera adjustment screws

9- Monitor wire connection terminals on the back of the panel

10- 12 volt power connection wire

11- Open the door connection wire
As mentioned, these phones are available in two types, black and white and color. Ordinary black and white phones use an image lamp and the image of these phones is displayed as an LCD.

In the iPhone video system, the power supply used is similar to ordinary iPhones, which have 12 volts dc and ac output. The ac output is intended for feeding the opener. This output connects directly to the blue and red wires behind the panel.

The door opener in these iPhones is of two types, the first of which is with a chain, which uses the stored energy of the spring to release the door tab, and the second type does not need a chain and is pulled in by the tab and in it opens. It is good to know that the second type of openers are usually powered by 12 dc volts 1 amp.

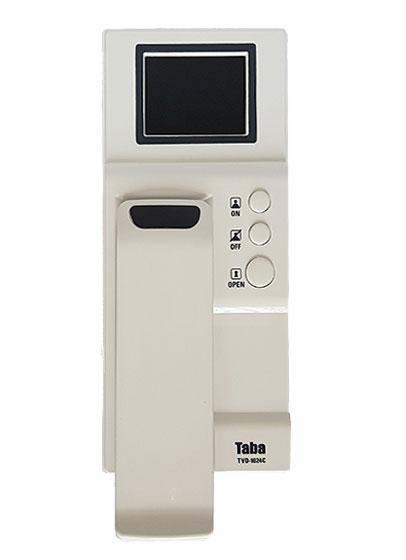

This time around, this is a design inspired by Samsung, which has undergone major changes to produce a better model than the Samsung model. This iPhone model is more designed for those who want to visualize older iPhone audio in old buildings. It is also used in duplex homes, which is just enough to connect between two floors and have a small image. Noteworthy features of this device are its small screen which takes up little space on the device. Also interesting about this small screen is the TFT technology. Combining a small (2.4-inch) display with this technology, it makes this device one of the least used video iPhones.
