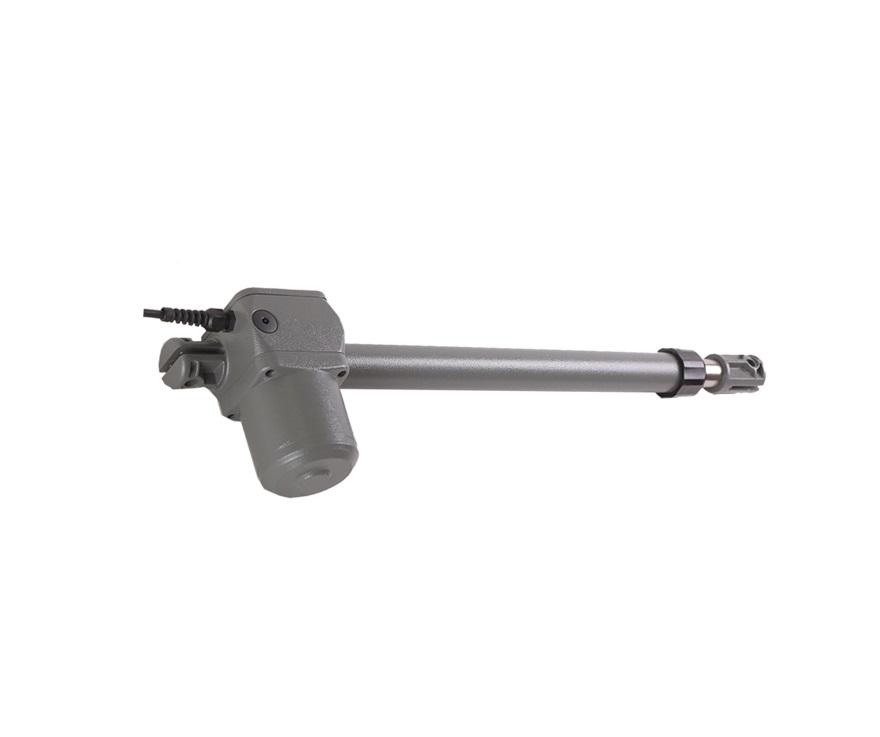

Automatic Jack SZ-400 Suzuki

Suzuki SZ-400 electric jack is the newest automatic door of Suzuki company or the same as Fadak Image Parsian, which has entered the market with good design and soft and acceptable function, but stereotyped and relatively old. Suzuki electric jack, which is of electromechanical type, is equipped with a The 40 cm shaft and the shaft are made of small steel gears, which makes it more powerful, longer lasting, and more accurate and better braking is applied to this parking door, and the shaft of this electric jack is completely one-piece and fine-grained.

Due to the design of the body of the jack and its 220V motor and sufficient power that is measured for each jack up to 400 kg, this parking jack can also be used for single or double door doors and doors that open more than 90 degrees. In addition to the reasons mentioned above and the comfort release system that has been installed, this system can be used electromechanically in places where the door opens to the outside. The steering circuit of this jack is of digital menu type and it is programmed based on microprocessor. And the input elements for this arm jack are timed.

Specifications of SZ-400 jack:

Ability to open and close 40 times per hour
Use of long-range automatic door remote control
Ability to open and close each door of 400 kg width with a width of 2 meters
Ability to adjust three speeds for each lenght separately
Adjust the opening and closing time of each lever separately and with a soft start (Soft Start) in the first moment of engine movement

This jack uses CITY1 - EVO control center. This control circuit, designed and built by Suzuki itself, is an innovative product that guarantees safety and reliability for arm jack automation. The steering wheel model of the Suzuki arm jack is designed to be extremely functional and easy to install.

Features of Suzuki SZ-400 Arm Jack Control Center:

Each arm is equipped with a single-phase motor with 12V AC operating voltage (single-phase AC motor with a maximum consumption of 722 watts)
Has a push-button terminal with the same function as the remote control
Input for photocell
Input for safety edge, the ability to use standard safety edges with normal closed contact
Input for open and closed switches
Perform a photocell and safety test before opening or closing the door
Engine performance programming with a very accurate and flexible digital menu
Adjust motor power and operating time by potentiometer
Ability to install electric locks for more protection p
Monitor inputs and outputs by display and LED
IS55

Suzuki SZ-400 remote jack has a two-speed working mechanism and has acceptable braking power. Complete accessories inside the pack include: steering circuit - jack arm - number 2 remote control - flasher - photocell eye and installation blessings. It is better to use experienced people to install this electric jack. SUZUKI-SZ-400 electric jack is offered in one color (gray) and with an existing 18-month warranty.
