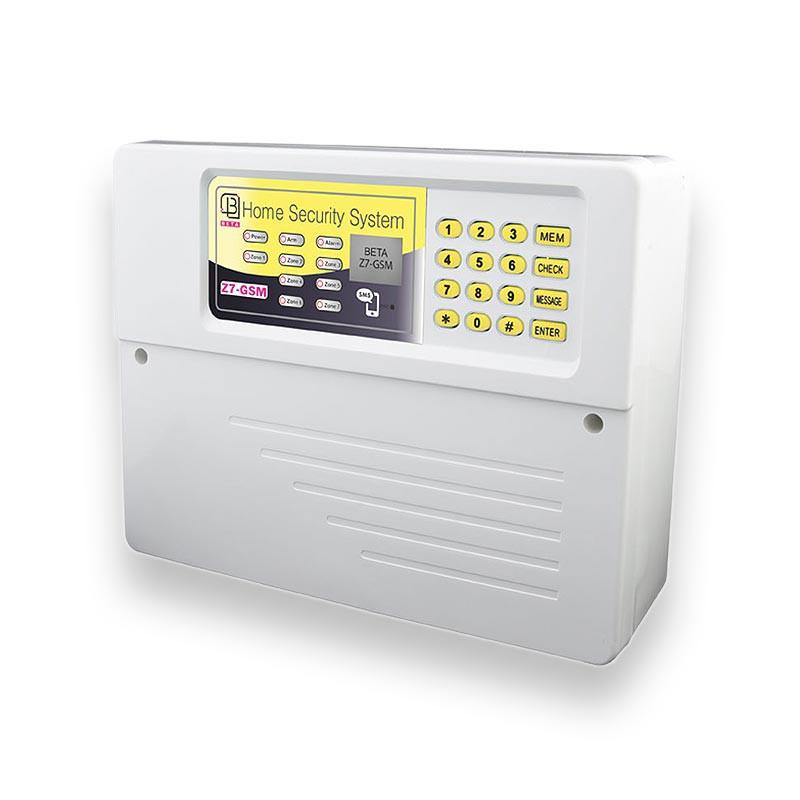

Security alarm Z7-GSM Beta

A burglar alert or robbery system is a device that notifies an audience while going through a privacy by announcing a voice, call, or text message to their contacts.

1- Central Alarm Panel

The central alarm panels are divided into two groups. Alarms are divided by SIM card callers and fixed line alarms. Fixed line panels are capable of contacting mobile phones and contacts, but in addition to contacts, SIM card panels have the ability to send texts to mobile phones, and most of them have a mobile app that works very well with them. Has made it easy. According to alarm companies, the design of the central panels are different. In some companies, the caller is built into the same panel, but in others, the caller is a separate device and installed next to it. If you ask us in terms of security which panel has the highest security and protection, no doubt our answer will be alarms with SIM card callers. Because burglars prevent the contact from being contacted by disconnecting the phone line, but in the SIM card alarms, it is no longer possible to disconnect the contact between the center panel and the contacts.

2- Motion sensor, sight or detectors

Alert eyes are motion detection sensors. The ocular sensor operates on the basis of infrared waves. Inside is a German PIR sensor that triggers any movement changes in the environment when detected. This sensor retains an image of the environment based on the continuous transmitting and receiving of infrared waves. If there is a movement around the sensor, the level of the reflected back waves from the environment will change, so the sensor can detect the changes. They usually install sensors and eyes in places such as door entrances, windows, and other places that may be illegally accessed during store, organization, etc. closures, immediately after detecting any movement. Activate the burglar alert system from these locations. The sensors have a range and angle of view depending on their different models. But in general the eyes have a range of 8 to 10 meters and a viewing angle of 100 to 120 degrees. And the closer a person or a moving object is to the eye, the higher the sensitivity of the eye. Other features of a burglar alarm or alarm system include a backup battery and an alarm. Battery backup is a 12V acid battery that is housed in the central panel (alarm box) and usually feeds up to 8 hours in the event of a power failure or possible malfunction of the incoming power cords. The siren also has the task of alerting loudly. Sirens have different types and depending on different places, a special type of siren is used. Beta Alarm Z7-GSM is one of the latest beta products in the field of protection and security of places. There are 7 zones for this product that are unique in their kind. This product is exactly the same as the Z5-GSM Beta Alarm with 7 zones. It should be noted that the maximum number of zones on a CCTV that has one screen and one control panel is often 8 (each zone only one sensor). Generally speaking, alarm zones are used to manage and control alarm system sensors. As such, one or more sensors are assigned to one of the zones. After the sensors are assigned to the zones, each time a sensor is triggered, the system will tell you which zone is activated (sensors are a device that detects unauthorized traffic in one location) or about environmental sensors when An environmental factor such as temperature or smoke concentration will change, they will recognize. One of the most important features of this product is the ability to enable and disable zones through software. This thief catcher is manufactured in white color with dimensions of 285 * 85 * 285 mm.

Zones used in this product:

Generally, burglars are divided into three types of wireless, wire and hybrid. Hybrid alarms also come from a combination of two wireless and wireless systems. This alarm is connected to the power supply by wire, but it is wireless to other parts. One of the benefits of hybrid alarms is that their batteries do not run out, which makes the system never shut down. With the Z7-GSM Beta SIM card thief you can control both the SIM card and the landline. This product has a 24-hour zone, which enables the zones to be activated or deactivated 24 hours a day via a dip switch on the alarm and the ability to semi-activate the system via remote control. It also has 7 wired zones (requires external power supply) and 2 wireless zones and a smoke detection zone. In addition, the device has the ability to alert and report power outages and speaker wires. The wireless eye is used to communicate wirelessly with the central device. This sensor is used for environments where wiring from the sensor to the device is not possible or the cabling path is too long. This device includes 10 encoded wireless eyes that are unique features of this beta product. The device memory uses about 20 numbers in the phonebook memory and one voice message memory for a total of 30 seconds.

more details :

Z7-Gsm Beta Card Center
It has seven distinct zones
SIM card caller and landline
Separate fire alarm zone
Send report to mobile
Send alert if speaker or siren is interrupted
One year warranty
