Fiberglass patch LC-LC APC OS2 Duplex Alpha Font

Alpha Font

An optical fiber patch is a cable that connects the two ends to an optical fiber connector. This device is used to make connections between equipment and components in an optical fiber network, also called a patch cable. There are various types of fiber optic patch cord with different types of connectors, such as LC, FC, SC, ST, MU, MTRJ and E2000 and so on. There are several types of fiber optic patch cords and they can be divided into mainly types of connectors and cables. Fiber optic patch cords can be classified by a variety of fiber optic connectors. For example, the LC patchcard is called this because it has an LC connector. Similarly there are SC, ST, FC, MT-RJ, E2000, MU and MPO / MTP patchcards. Another type of polarization is the ferrule connector, which is divided into three types of PC, UPC, and APC patch cords.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

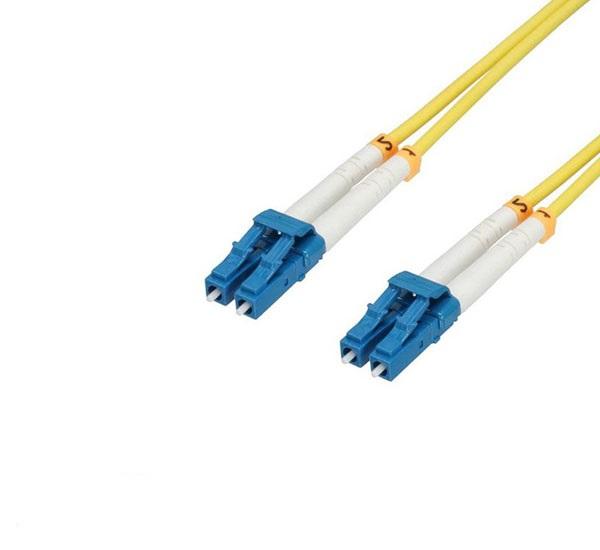

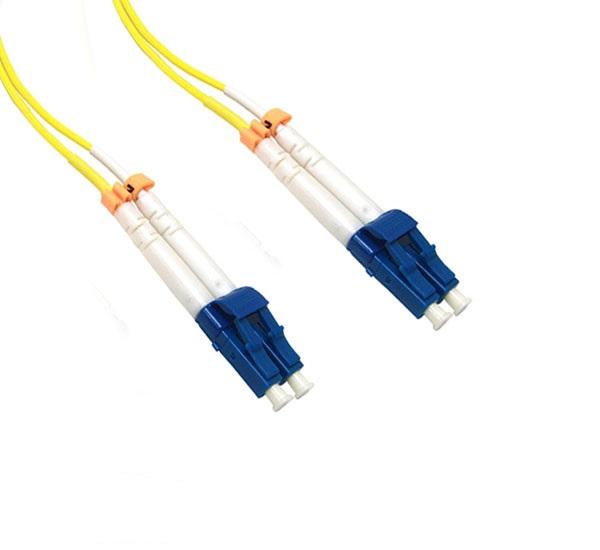

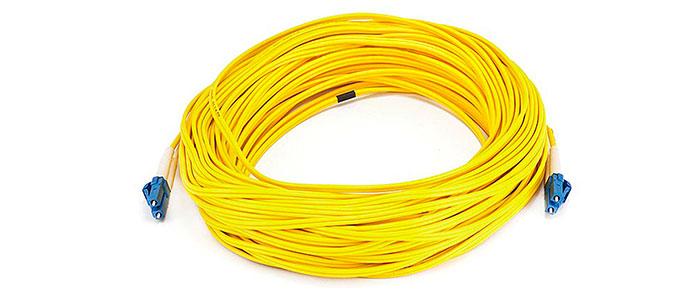

Fiberglass patch LC-LC APC OS2 Duplex Alpha Font

The LC patch ends with the LC connector. LC stands for Lucent connector. The LC connector is in the style of pressure and fastening structure. LC type lightweight patch is a popular type of lightweight, small format which reduces space occupancy and is widely used for installation of high density and compact areas. Uses 1.25mm, which is half the size of the ST patch. This patchcard performs well in single mode mode and is favored by most people and consumes a great deal. LC patch conforms to IEC and Telcordia standards, ANSI / EIA / TIA. The LC patchcord connector is used for both 1.6mm / 2.0mm and 3.0mm sizes. This product, known as the Alphabet Fiber Optic Patchcord, is 10 meters long and comes in OS2 single mode fashion. Network. The Duplex Fiber Pack uses two LC / APC connectors with 8-degree curved plastic ferrule connectors on both ends and these connectors are made of blue plastic. The fiber core diameter of this optical fiber patch is 9 microns and the diameter of its fiber is 125 microns. Other features include the LC / APC-LC / APC OS2 Duplex 10m fiber optic patch: This optical fiber patch is used in the military, transportation industry. , Optical telecommunication systems, local organizations, etc., and its connectors are fastened to the devices with a simple push. This fiber patch is capable of delivering infrared laser light with a wavelength of 1300 to 1550 nm due to its single fashion. Another feature of the single is the fashion of this yellow fiber-coated PVC fiber optic cable.

Product Specifications

Connector type
LC / APC-LC / APC
Connector structure
Duplex
Fiber type
Single fashion OS2
Cable length (m)
10
Cable cover material
PVC
Cable cover color
زرد
Connector color
Blue
