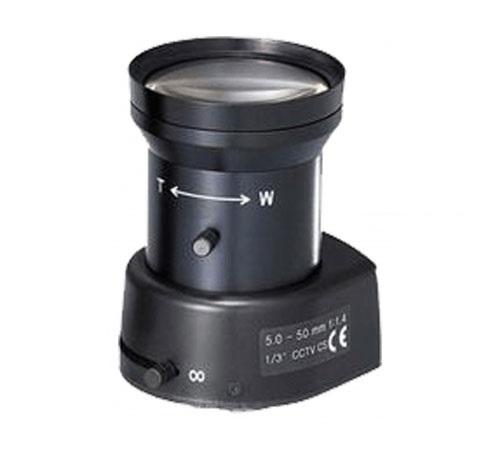

CCTV lens MDL-0550D Micro Digital

Micro Digital

CCTV lenses are divided into different types according to the focal length, Fix lens, Variable (Varifocal) and Zoom (Motorize). Fixed lenses come with a fixed focal length and provide a stable field of view and angle after installation. Variable lenses have variable focal lengths and we can select and adjust any desired angle between the minimum and maximum focal lengths. For example, a variable lens with a focal length of 1.5 mm can be adjusted from 0.5 mm to 1 mm per focal length. Variable lenses can only be adjusted to the desired focal length during installation, and will not be able to change the camera's viewing angle after installation. The zoom lens is a variable lens that is focal length adjusted by the camera's own electronic motor and the user can do the desired focal length remotely.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

CCTV lens MDL-0550D Micro Digital

CCTV lens is one of the most important components in creating images in CCTV cameras. Since different lenses, different field of view and different zoom levels and various features such as auto-iris, manual zoom and focus setting are provided, one of the difficult issues involved in setting up a CCTV system is lens selection. It's just right for the camera. Incorrect lens selection can result in limited surveillance and surveillance of the camera in the area or may not have enough zoom to capture events clearly. The environment on the camera's image sensor is in charge of the camera. CCTV lenses can be divided into three categories: Fixed lens: Creates a fixed angle of view depending on the focal length of the camera. Vari-focal lens: Adjusts a variable angle according to its focal length range. This creates Knd.lnz·hay Enlarge (Zoom lens): This lens is a lens are adjustable and equipped the engine to change the focal length of the lens can be changed by changing the distance . Zoom lenses usually focus automatically.

Product Specifications

Dimensions (mm)
44 * 67.22
(Focal length (mm
5 to 50
(Back focal length (mm
9.8 to 11.7
Iris type
Direct Drive
Aperture
F 1.4 ~ 360
D
60.0 ° ~ 7.4 °
H
49.4 ° ~ 5.8 °
V
38.0 ° ~ 4.4 °
Mount Type
CS
