Sprayer Cable H05VV-F 5x2.5 Royan

Royan
Iran

Cable (flexible cable or flexible cable) of two or more single-stranded conductors made of copper metal and insulated in its wires in lightweight PVC polymer (PVC) cables The type of PVC / D polymer and PVC polymer blend cables are made of PVC / A polymer. Lightweight cables as input and connection cables for electrical appliances, home appliances and appliances with two plugs fixed to the cable and power cables for outdoor, underwater, indoor electrical power supply Water, indoors, cable ducts, power plants, industrial uses, in distribution centers as well as in consumption networks and where mechanical damage to the cable is not likely.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

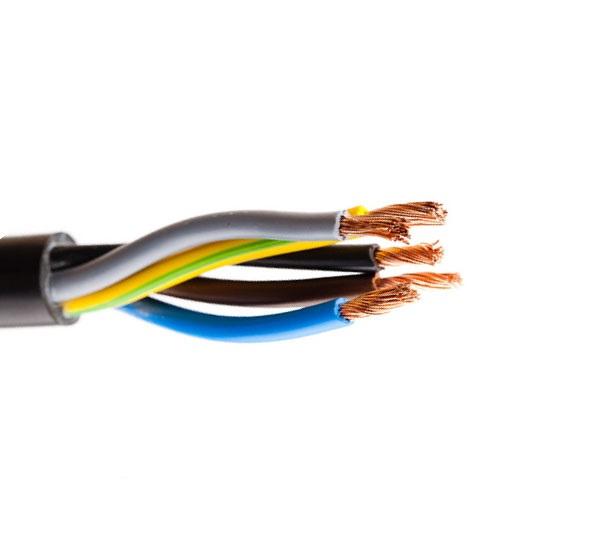

Sprayer Cable H05VV-F 5x2.5 Royan

The 5-strand fiber reinforced cable having a 3.75 mm diameter PVC insulation to prevent leakage of electricity and a 12.35 mm diameter PVC cladding can be used in addition to medium voltage electrical and electronic equipment in cooking and heating appliances. Provided that it is not in direct contact or affected by heat. It is also capable of withstanding voltages of 300 to 500 volts and uses a 2.5 mm square cross section and ISIRI 607 53 standard. This product is a conventional power supply cable (H05VV-F, NYMHY) with 52 conductors of 0.24mm diameter 5mm anodized copper conductor to transmit electricity.

Product Specifications

Cross section (mm ^ 2)
2.5
Rated voltage (V)
300-500
Conductor material
Annealed copper Group 5
Number of conductors in each string
52
Conductor diameter (mm)
0.24
Insulation material
PVC
Insulation diameter (mm)
3.75
Cover material
PVC
Coating diameter (mm)
12.35
Standard
ISIRI 607 ​​53
