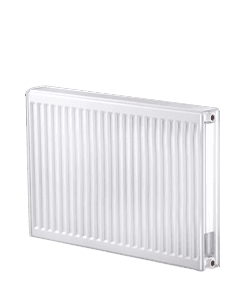

Afrooz Panel Radiator Lorch
Lorch
Iran
Panel Radiator 120C Lever Model Afrooz, manufactured and supplied by the latest Leverch company based on the latest technologies and full automatic production line from Italy, utilizing the best and most advanced raw materials. Generally, the panel lever radiators of the Afrooz model use a curved shape and have a heat capacity of 1880 kcal per hour and a discharge volume of 5.68 liters per meter. The panel lever radiator Afrooz model is fully compatible with all types of central heating systems and design heating package. Consumers have no restrictions on the use of lorch radiators. Panel Radiator 120C lever model with thermal capacity of 2256 kcal at 60 ° C, has a high efficiency and heating.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Afrooz Panel Radiator Lorch
: Description
Easy to install
Beautiful and durable
Full automatic production line and smooth, flawless welding
It has two individually designed connectors that maximize the efficiency of this panel radiator in terms of internal and external heati
High efficiency and heating
Extremely low dewatering volume, which increases the heat transfer rate
Compatible with package type
The possibility of producing radiators on both sides by clamp mounting
13 bar air pressure test, which enables the radiator to operate at 10 bar pressure and to be used in buildings up to 22 floors
1.25 mm sheets in accordance with EN10130 are used in the manufacture of panel radiators
ویژگی های کلی
Warranty
has it
Dehydration volume (lit)
5.68
Thermal efficiency (kcal / h)
2256
Blade / panel length (mm)
555
Width (mm)
1200
Wet surface thickness (mm)
104
Weight of each blade (kg)
36.12
Body Material
steel sheet
Axis (mm)
500
User temperature interval (F)
40 to 200
Coating color
White RAL 9016
Temperature transfer process
Standard Double Convector
Weight (kg)
35
