NVR device TV-NVR2216 16CH Trendent

Trendent

NVR stands for Netwrok Video Recorder and is actually a server in a networked CCTV system. This device captures and captures images of the Network CCTV (IP) camera upon receipt.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

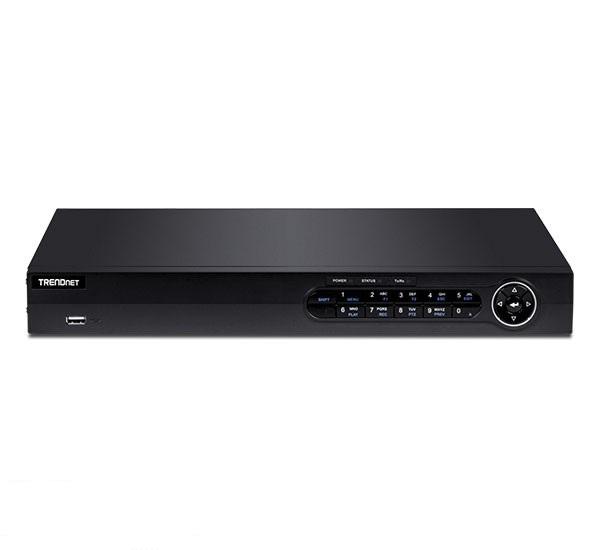

NVR device TV-NVR2216 16CH Trendent

The NVR device can be simply considered equivalent to a server in a network CCTV system. The NVR will handle all DVR functions in the network CCTV system. In addition, if it is POE, this device can also be used as a power supply for cameras. The functions of the NVR in the network system are:

Capture images of cameras connected to the NVR
Ability to view images seamlessly
Ability to adjust images and image capture features
Camera power (if NVR and cameras are POE)
Create features related to image processing

NVR:

NVRs are usually classified in several ways. The most important of these aspects are the number of channels and the bandwidth of the NVR. The most common channels for NVRs are:

4-channel NVR: Ability to install up to 4 network cameras
8-channel NVR: Ability to install up to 8 network cameras
16-channel NVR: Ability to install up to 16 network cameras
32-channel NVR: Ability to install up to 32 network cameras

The amount of input bandwidth of the device determines how much information the device will be able to process. This feature is important when you want to connect very high quality image cameras to your device. In this case, you will need to calculate the network traffic and then select the appropriate NVR. (Read this article for specialized information on how to choose an NVR)

POE device:
Some NVR models have POE capability in some of their channels. The POE capability in the CCTV camera allows the power to be transmitted to the equipment by the network cable at the same time as the image information. This way, there is no need for separate cabling for the cameras, and the cameras are powered by the POE port of the NVR device.

Difference between NVR and DVR
NVR and DVR are both video recording devices in CCTV systems. The DVR is often used in HD analog CCTV, however it can also support IP cameras. The NVR has more advanced VCA image processing capabilities than the DVR. These features include face recognition, plaque recognition, and more.

Arfooq NV device has 2 HDD / SSD hard drives with SATA II interface and has a maximum capacity of 12 terabytes. This NVR device supports IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP v2, HTTP, UPnP, RTSP, RTP, network protocol. RTCP benefits. Trendent NVR device is produced in the dimensions of 45 × 270 × 380 mm and weighs 1.64 kg and is sold in the CCTV market with excellent manufacturing quality.

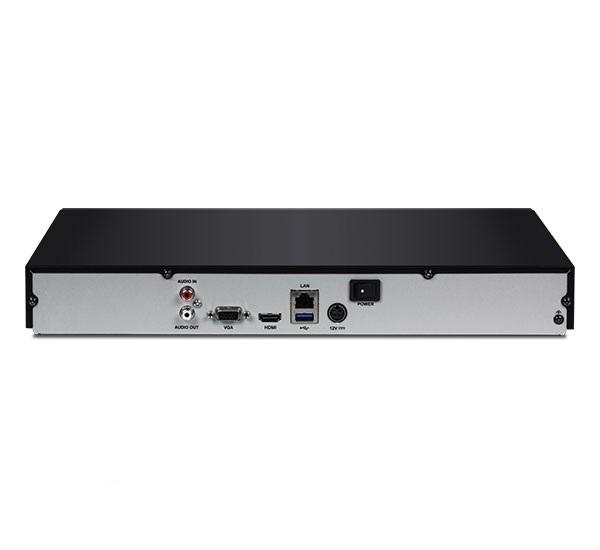

TV-NVR2216 NVR device has 10/100 / 1000Mbps network port, HDMI port, USB 2.0 port, USB 3.0 port, VGA port and has a resolution of 1024x768, 1280x1024, 1280x720, 1600x1200, 1920x1080. This NVR device has a power input of 100 to 240 volts of AC type with a frequency of 50/60 Hz and a power output of 12 volts of DC type.

Product Specifications

Network port
2xUSB 2.0
Number of outputs
VGA"
resolution
1280x1024
Capacity (TB)
12
Dimensions (mm)
380 * 270 * 45
Weight (kg)
1.64
Power input (V)
100 to 240
Power output (V)
12
Power consumption (W)
10
Audio input
1kΩ"
Audio output
RCA connector
Operating temperature
-10 to 50
standards
IEEE 802.3x
Network protocol
IPv6
hard disk
2 HDD / SSD hard drives with SATA II interface
