Heat detection sensor FD7110 Nade
Nade
Iran
A fire alarm system has multiple devices that work together to detect smoke, fire, carbon monoxide and other emergencies and alert people through audio and visual equipment. These alarms can be automatically activated by smoke detectors and thermal detectors, or can be manually activated with the help of a fire alarm at specific fire alarm activation points. Alarms can be motor bells or beeps mounted on the wall. They can also be loudspeakers through which they can alert and then send a voice message to evacuate the location and to warn indoors not to use elevators.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products

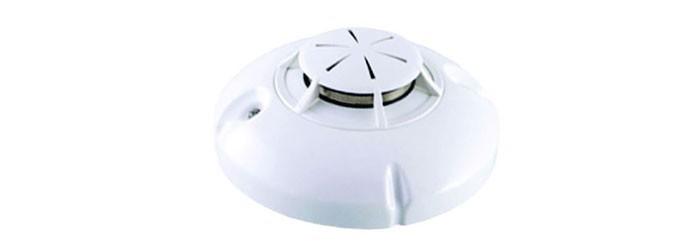

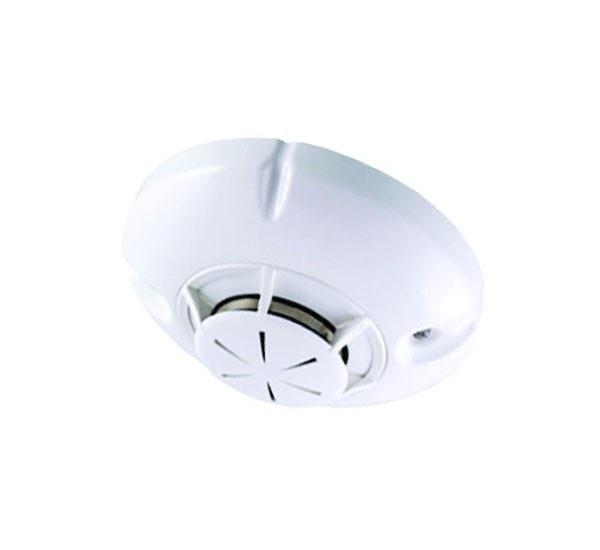

Heat detection sensor FD7110 Nade
The above thermal detector is an addressable type heat detector sensor that is based on an algorithm that declares fire as usual and is suitable for applications such as the kitchen and steam room where the temperature rise rate is slow. is . This addressable thermal detector is manufactured from 100 x 47 mm plastic body and 100 grams of heat resistant body and sells IP43 as a fire protection equipment in the market of protective equipment according to EN54-5 European standard. Arrives. This thermal sensor operates at temperatures between -10 to 55 degrees Celsius and can cover a circular area with a radius of 10 meters and a height of 8 meters.
Product Specifications
Material and body color
White plastic
Covered area (m)
A circle with a radius of 10 and a height of 8
Operating time current (μA)
40
Degree of protection
IP43
Voltage source (V)
15-30
Working temperature (c)
Oct-55
Temperature and sensitivity working class
EN54-5 and working class A2S or A1s
Setting up
"Control using microprocessor

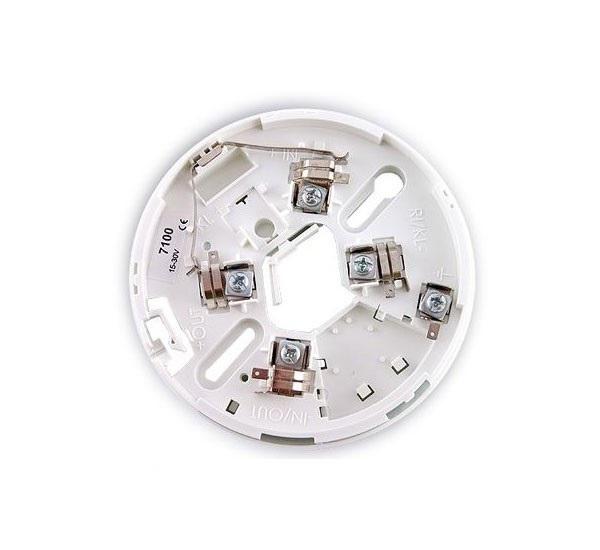

Terminals
Suitable for wires with a maximum cross section of 2.5 mm2
Weight (g)
100
Dimensions (mm)
47 * 100
