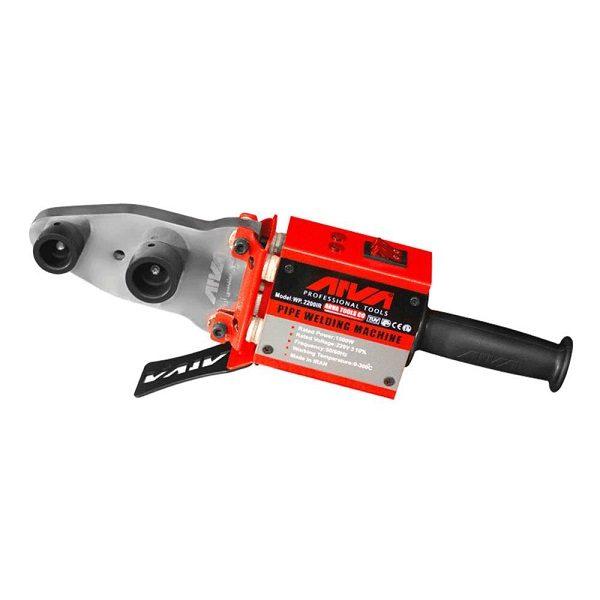

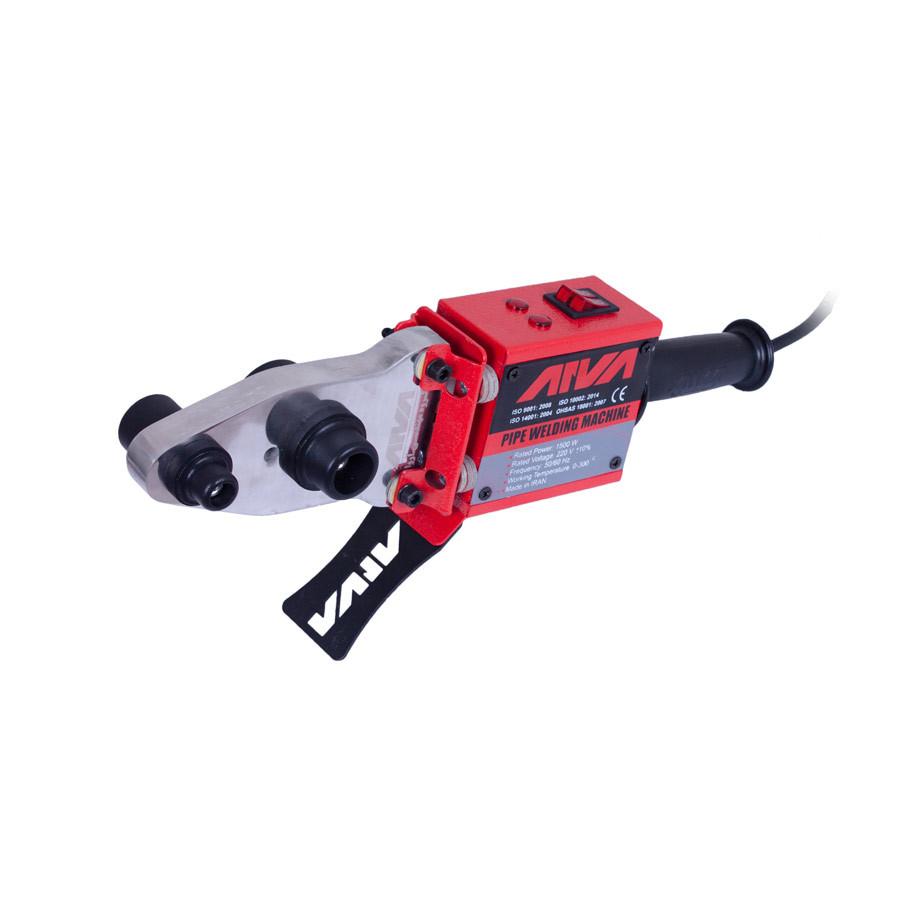

Pipe Welding Machine 2302 Arva

Arva
Iran

Iron pipe (green pipe welding machine) is used to connect different types of green pipes (PE, PP-R and PB) and propylene. This product is in the group of installation products. Autovoltaics are usually accompanied by accessories such as gloves, meters, allen, pipe scissors, bites of different sizes and screwdrivers.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Pipe Welding Machine 2302 Arva

The green tube iron has one or two electrical elements and the pieces are used in the form of male and female. The female piece is used to enter the pipe and the male piece is used to connect and generate heat and heat the pipe. The appropriate bite should be selected based on the size of the pipe. When buying the desired autolume, you should pay attention to which bite sizes you need. The bite must be clean when connecting. Use a special wrench (Allen) to install the bites.

How to use
First, cut the pipe to the desired size by cutting the pipe to the desired size.
Then place the ironing machine on the special stand and choose the right bite with the diameter of the pipe.
Clean the bites and install them on the tube racket so that there is full contact between the element and the bite. Secure the bites with a special wrench to the rocket.
After connecting the green pipe welding machine to electricity and heating the iron to 260 degrees, and turning off the thermostat light, which means that the device is ready to work.
Using an Allen wrench, you can close the bites well and turn on the machine.
Adjust the desired temperature using the device elements.
To begin, turn on both switches (on and off switch) on the top of the device (each switch is for one element), then set the dimmer to the desired temperature. After a while it reaches the set temperature.
Once the two pieces are warm, they are easy. Put them together without rotation and connect them. Be sure to put the two pieces together correctly and at the right angle, because it is not possible to separate them after cooling.
For complete information on welding time and cooling time, you can read the table related to welding information. It is usually in the manual of the device. But in general, if you touch the connection with your hand, you should not feel too hot. .
After use, the device temperature drops due to contact with the solid tube. At this time, the device thermostat automatically raises the temperature again.

Description :

- Has a power of 1500 watts

- Has European CE standard

Equipped with a rocket with the ability to close three bites simultaneously

- Equipped with a movable base mounted on the body

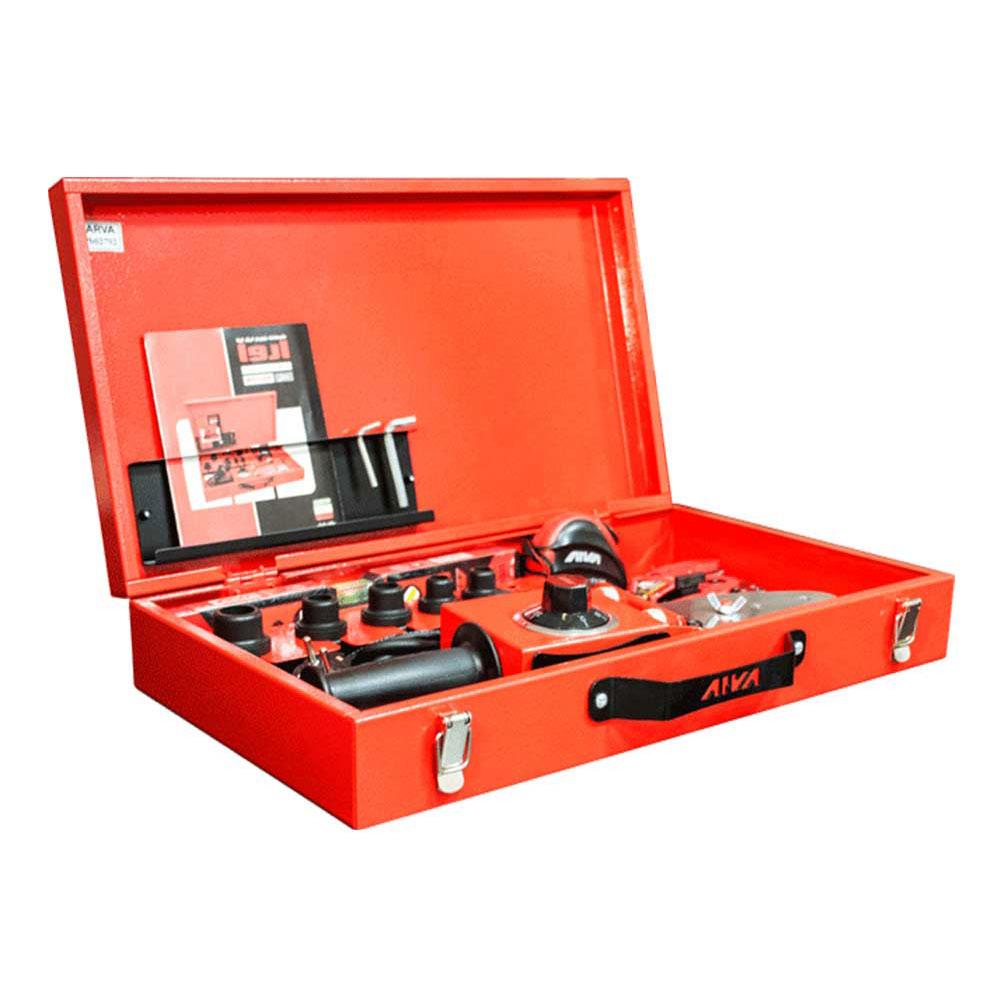

- With a strong metal bag and complete accessories

- It has a refractory wire and is resistant to high temperatures

- The maximum surface temperature of the bite is 300 degrees Celsius

- Equipped with anti-heat and unbreakable polyamide handle

- Has 20, 25 and 32 bites


Product Specifications

Input power (V)
Electricity
Warranty (month)
12 (Areva Company)
Application of tools
ساختمانی
Input power (w)
1500
Maximum temperature
300
Number of bites
"20
