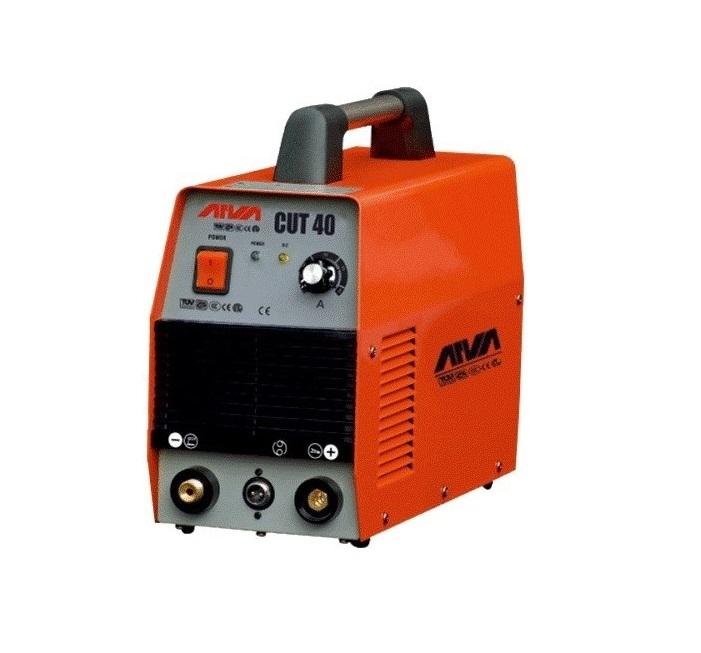

Plasma Cutting Inverter CUT40 Arva
Arva
Iran
Plasma cutting is a process in which steel or other metals (sometimes other materials) are cut in different diameters by a torch. In this cut, a noble gas (in some cases compressed air) is blown at high speed from the nozzle and at the same moment an electrical arc (ARC) is created between the gas at the nozzle head with the cutting surface and the gas goes into plasma. The plasma is hot enough to melt the metal and make the cut. Compressed air also has enough pressure to push the molten metal away from the cutting path.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Plasma Cutting Inverter CUT40 Arva
The CUT40 2130 plasma cutting machine is suitable for cutting all types of metals. The capabilities of this cutting machine include its low power consumption and high power. Plasma Cutter CUT40 Model 2130 has dimensions of 371 * 153 * 232. It weighs 9 kg. This cutting machine has IP21 protection and F insulation. This cutting machine has a power factor of 0.6 and output voltage of 96 volts, output current of 20-40 amps and operating frequency of 50-60. This cutting machine is equipped with TRAFIMET (Italy) and has a high performance.
This cutting machine will be able to cut sheets 1 to 12 mm thick without any problems. The CUT160 Model 2133 Plasma Cutting Machine has a 1mm Torch nozzle diameter and also a compressor pressure of 4 to 5 kg.
Product Specifications
Number of phases
single phase
Input power voltage (v)
220
Dimensions (mm)
371 * 153 * 232
Net weight (kg)
9
Output current range (A)
20-40
Maximum cutting diameter (mm)
12-Jan
Air compressor pressure (kg)
05-Apr
Operating frequency (Hz)
50-60
Output voltage (v)
96
Power factor
60
Degree of insulation
F
Degree of internal protection
IP21
Inner diameter of torch nozzle (mm)
1
