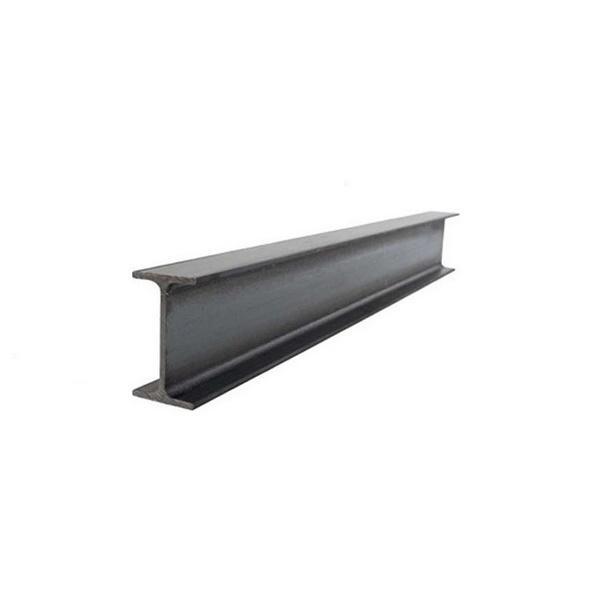

IPE beam 16 Esfahan steel
Esfahan steel
Iran
IPE type beam is produced in Iran and Europe and is I-shaped and the thickness of its wings is unchanged. IPE beams in Iran are considered by many engineers and building builders. The wing thickness and life of the IPE beam are constant throughout the beam.
You can also make a price as a seller
Request a price to negotiate and get a better offer
similar products
IPE beam 16 Esfahan steel
IPE beams are used in construction in columns, trusses, beams and in covering honeycomb roofs and bridges. The thickness of the IPE beam wings at the beginning and end is quite uniform.
General advantages of using beams:
- Possibility of development after completion of the structure
- Ability to connect more pieces together
- High speed of execution and installation
- More use at high altitudes
مشخصات ابعاد و وزن
Height (mm)
160
Wing width (mm)
82
Thickness (mm)
5
Wing thickness (mm)
7.4
Radius of curvature of corners (mm)
9
Weight one meter (kg)
15.8
Minimum yield stress (N / mm2)
235
Tensile strength (N / mm2)
360
Minimum elongation (%)
22
