Basic Materials
Raw Metal Materials
U-channel
Light parallel wing U-channel 14 Esfahan steel

Light parallel wing U-channel 14 Esfahan steel

Esfahan steel
Iran

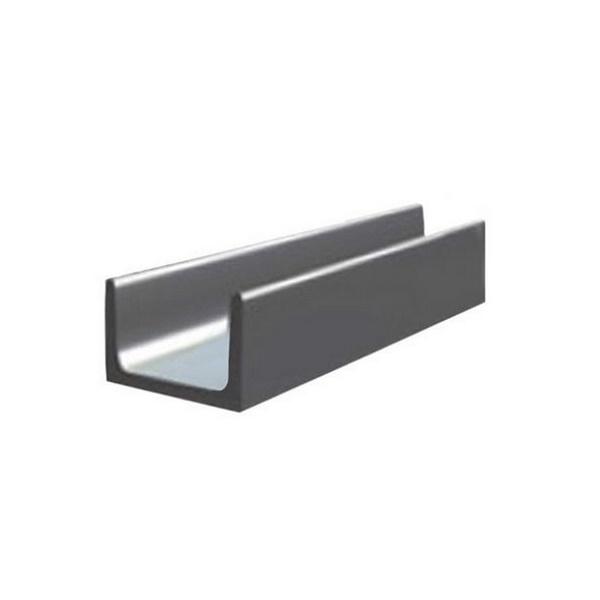

The stud profile consists of a horizontal core and two vertical wings and is curved at the junction of the wings with the core. The stud profile is U-shaped and C-shaped, and the two are slightly different from each other. Studs are named based on height (in centimetres).
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

Light parallel wing U-channel 14 Esfahan steel

Lightweight parallel wing chanels are made of carbon steel. The cross-sectional shape of the light parallel wing stud consists of a horizontal core and two U-shaped vertical wings that have a circular curvature at the internal angles of the cross section. This profile is widely used in industrial and construction applications. Studs are made similar to the standard I-shaped beams. The gap between the stud and the I-shaped beam is the curvature of the edges to one side in the stud. Studs are generally produced by hot rolling.

مشخصات ابعاد و وزن

Wing width (mm)
58
Thickness (mm)
4.9
Wing thickness (mm)
8.1
Radius of curvature of corners (mm)
8
Cross-sectional area (cm2)
15.6
Weight one meter (kg / m)
12.3

Minimum yield stress (N / mm2)
235
Minimum tensile strength (N / mm2)
360
Maximum elongation (%)
26
