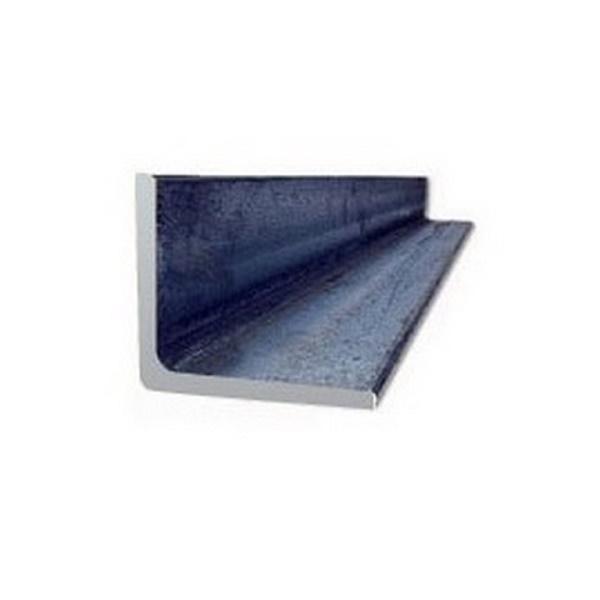

Angle iron 5*55 Kouhpaye steel

Kouhpaye steel
Iran

A corner is a profile whose cross-section is two perpendicular sides. Corner is one of the most important building materials and is used in civil, construction and industrial projects.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Angle iron 5*55 Kouhpaye steel

Corner is a profile with a cross section that consists of two sides with a certain angle next to each other. The two sides that make up the cross section are called the wings, and in its usual form, the angle between the two wings is 90 degrees.

Corner applications in construction:

  • Winding
  • Construction of truss
  • LSF structures
  • Power transmission towers
  • Used to connect bridges to columns
  • Used to connect beams to load-bearing beams
  • Used to connect columns to plates in the foundation

مشخصات ابعاد و وزن

Wing width (mm)
55
Wing thickness (mm)
5
Weight one meter (kg / m)
4.18
Connection angle radius (mm)
8
Wing corner radius (mm)
4
Cross section area (mm2)
532

Minimum yield stress (N / mm2)
235
Tensile strength (N / mm2)
360-510
Maximum elongation (%)
17
