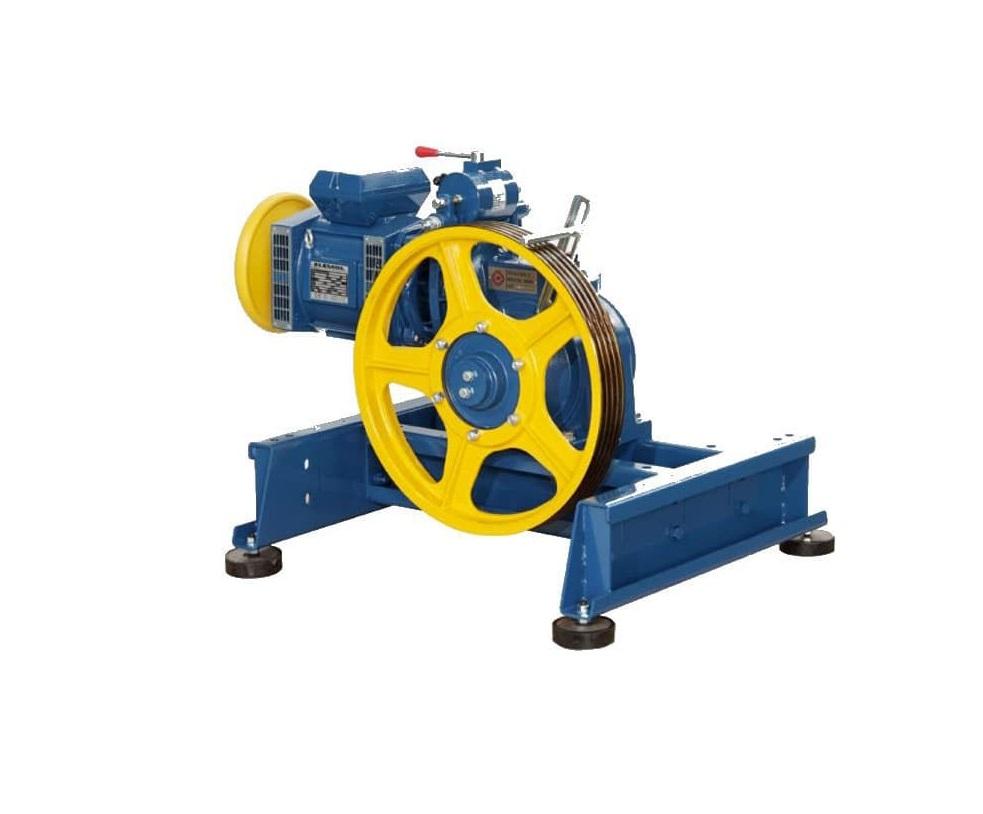

Elevator motor m76 Montanari
Montanari
Italy
One of the most important choices in parts, elevator motor selection proper lift is located in the engine lifts from the important parts of the elevator and is one of the important factors any elevators. Of course, a variety of engines there is an elevator, such as engines, saw and gearless Motors, magnetic, etc., while in Iran, the more the two types of engine hoists, gearbox, and the vessel can be used.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Elevator motor m76 Montanari
Specifications :
Gearbox Model: M76
Engine Type: 3VF
Static load: 2300kg
Loading: 480kg
Speed: 1m / s
Applicable height (stop count): (6) 30m
Flange diameter: 520mm
Flake Groove: U undercut
Boxing wire: 4 * 10mm
Engine speed: 1380rpm
Number of starters per hour: 240
Brake Magnet Voltage: 110v
Flange diameter: 520mm
Flake Groove: U undercut
Boxing wire: 4 * 10mm
Engine speed: 1380rpm
Number of starters per hour: 240
Brake Magnet Voltage: 110v
Technical Specifications
Speed (m / s)
1
Path (m)
30
Engine type
3VF
Static load (kg)
2300
Loading (kg)
480
Roll diameter (mm)
520
Square groove
Undercut
Box wire (mm)
10 * 4
Engine speed (rpm)
1380
Number of starts per hour
240
Brake magnet voltage (v)
110
