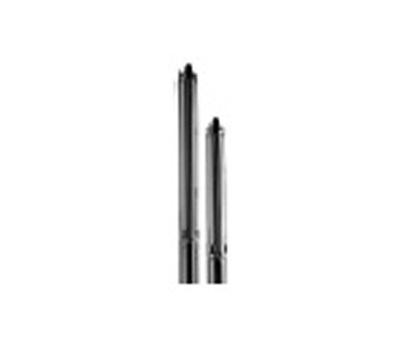

Submersible Electro Pump WINNER Ebara

Ebara
Japan

The submersible water pump is in the group of submersible water pumps and is used to increase water pressure. These pumps are a good choice for use because of their energy saving, low startup and maintenance costs and no need for foundation. This type of pump is typically 2900 rpm in terms of operation.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Submersible Electro Pump WINNER Ebara

Application of floating water pump:
These pumps are capable of supplying water on a domestic and industrial level and can be used in cases such as pressure systems, running water pumping and agricultural and agricultural land.

How to install a floating water pump:
Floating water pump can be installed horizontally and vertically depending on user requirements. These pumps will be installed horizontally if there is a height limitation.

Advantages of floating water pump:
Floating water pumps are completely waterproof, eliminating the risk of leakage and electrical contact
Unlike other pumps, there is no need to replenish the water source before pumping, which not only saves, but greatly reduces risks.
These pumps do not require extra pumping effort due to being submerged in the water so they do not consume much energy which will save energy.
Floating water pumps are lightweight, comfortable and portable, so no need to worry about installing them.
The pumps are capable of transporting water from the well, at elevations of more than 140 meters.


Disadvantages of submersible water pump:
One of the biggest disadvantages of a floating water pump is the difficulty of troubleshooting these pumps. In fact, if the water pump starts to leak, the internal components will start to damage without any signs, although they are rare, but damage is known to occur late.
The second drawback of the submersible water pump is the cost of these pumps, which is more expensive than other pumps.
These pumps are less susceptible to particulate matter than pumps because of impeller sealing.

Important tips for installing and maintaining a submersible water pump:
Floating water pumps do not require any special maintenance, but a few tips are required such as:
At a regular interval (every year or two), visit pumps, pipes, fittings and reservoirs to troubleshoot them.
If the water pump does not supply enough water, it is due to the deposition of inappropriate materials that you need to clean.
Try to clean the propellers and shafts at regular intervals.
When installing electric pumps vertically, you need to make sure that the motor is not at the bottom of the well or tank, and when installing the water pump horizontally, note that the engine does not stay at the bottom of the tank.
At the outlet of the submersible pump, a one-way valve must be installed to prevent water from returning to the pump.
Pumps with radial impeller (flat floor) are not suitable for extraction of water from sandy wells. For extraction of water from these wells, it is necessary to use a submersible water pump (the type of impeller is specified by the manufacturer). .
The engine surface should not be exposed to calcareous and alkaline sediments as the sediment formed on the engine body prevents it from being cooled by water and causes engine failure.
These pumps should not operate without water due to the cooling of the water around the shell and the lack of a cooling impeller.
The temperature of the liquid around the vessel is up to 40 ° C, so if the vessel is used to transport flammable liquids such as oil and other derivatives, its electro motor must be anti-ignition.
Saltwater float electro pumps are manufactured from various bronze and stainless steel alloys and are similar to agricultural water float electro pumps, with the possibility of pumping wells containing up to 35,000 ppm of chlorine (CL) and other corrosive ions.
Saltwater float electro pumps are used for pumping deep and semi-deep wells containing corrosive water and are operated in a discharge range of 10 to 70 liters per second and up to 400 meters in height.


Product Specifications

Fluid temperature range
0 to 30
Insulation class
F
Degree of protection
IP58
Rpm
2900
Shell
Steel 304
Butterfly and diffuser
Techno Polymer
Shaft
Steel 304
Maximum immersion depth (m)
100
Liquid type
Clean water
Maximum suspended particles (ppm)
50
Frequency (Hz)
50
