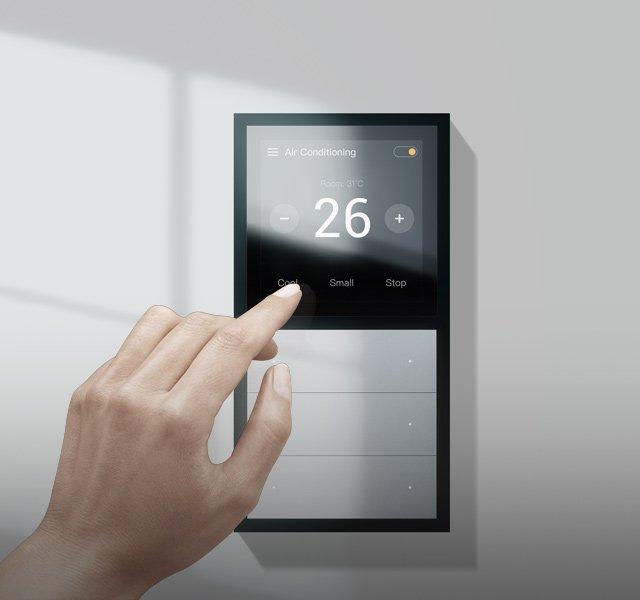

Touch panel the above model Mixpad in 2019 marketed that to the residents, this will allow you all system smart touch panel control. This hub of task-driven and relationship between the parts Orvibo including switches and sensors plays. The hub of smart and advanced by Lan cable or wirelessly to the modem WiFi connected and the user can remotely by the server Orvibo different commands to the smart system send them. With the use of the touch panel Mixpad can 255 piece smart Orvibo added that with the use of the screen, touch Mixpad all smart devices, including keys, Lighting, Dimmer, systems, audio, heating and cooling, power sockets, smart curtain Orvibo controlled.
Technical figures:

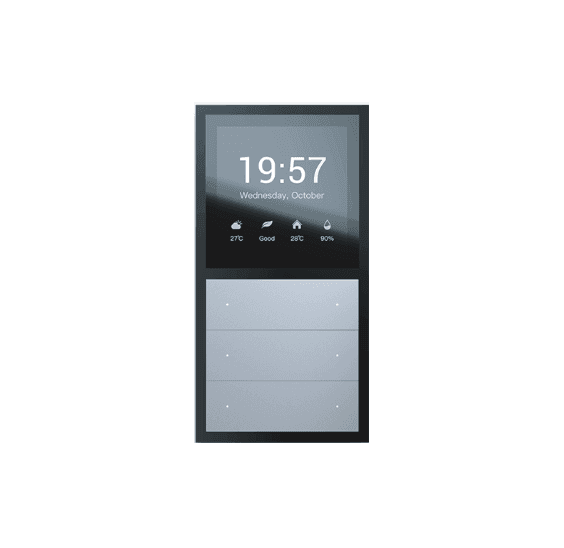

Name: Orvibo touch panel
Model: Mixpad
Processor: Quad-core ARM Cortex-A7 processor
Memory: 1GB RAM + 4GB ROM
Screen size: 3.5 inches Multi-layer non-air-gap Nano anti-fingerprints coating
Image quality: 720 * 720 DPI
Speaker: AAC 1813 speakers
Microphone: Two lines with a reception of 7 meters
Light sensor: Automatically adjustable image light
Body material: V0 ABS PC + 30% glass fiber
Temperature sensor accuracy: 0.1 ° C
Humidity sensor accuracy: 0.1% RH
Power supply: 220 volts (phase and zero)
Number of pieces added: 255 pieces
Number of scenarios added: Infinite
Wireless communication: Wi-Fi, Booth 4.0, Zigbee
How to connect with wire: Ethernet, KNX
Communication Protocol: ZigBee ZigBee HA
Network mode: ZigBee automatic networking
Wireless communication standard: IEEE 802.15.4
Communication frequency: 2.4 GHz
