Addressable module MCZ Teletek
Teletek

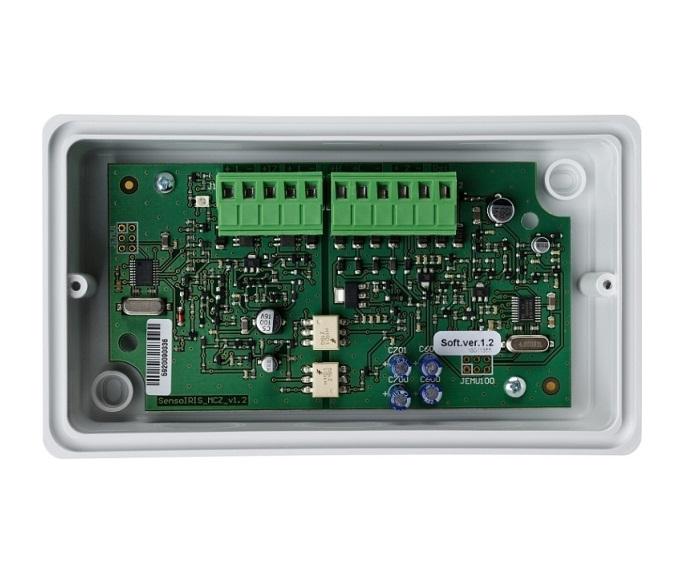

The SensoIRIS MCZ Convertible Zone Conversion Zone Module is a smart addressable device from Teletek Electronics. This module is supported by the TTE protocol (Teletek's proprietary protocol). This module can convert a conventional zone into an addressable part and report the status of that zone to the addressable fire alarm center. This module also takes its power supply from the loop line and can be controlled through its proprietary protocol. This module has a separate small plastic frame for placing the module inside and installing it on the wall....
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Addressable module MCZ Teletek
Attributes :
The interface between the conventional and addressable system
The maximum number of detectors per zone is 32
Ability to work with loop line voltage
It has an internal insulator
It has a plastic frame to install the module on the wall
Product Specifications
Dimensions (mm)
142 * 80 * 45
Voltage (V)
30-15
Current (mA)
Normal mode 3.0Vpp@27VDC Alarm mode 5.5
Weight (g)
23
Protection class
IP67
Suitable temperature (° C)
10- up to +60
Terminal size (mm2)
0.4-2.0
