The boiler must be installed with the following minimum distances:
1200 mm vertical
The sides and back are 1200 mm
1200 mm front
The distances will be increased by considering the position of the device and the comfortable rotation of the doors at the rear and front and the space required to remove the pipes.
In a boiler tank, water is heated by the combustion of fuels such as gas, diesel or diesel (black oil), electricity or nuclear energy. And is under pressure. In addition to water, the tank is used to heat other fluids, and to transfer the heat generated by the combustion process to the water inside the chamber, there is a set of pipes around the tank to heat the water and evaporate the water. These pipes, as well as the sheets used, must be fireproof and seamless, and their thickness must be determined according to the capacity and working pressure of the boiler. Steam boilers are available in both cast iron and steel, but most boilers ( carno boiler) are made of steel, the inner part of the boiler consists of two parts: the fire side and the water side. All interior parts of a boiler that are subjected to high pressure are made of iron alloys.

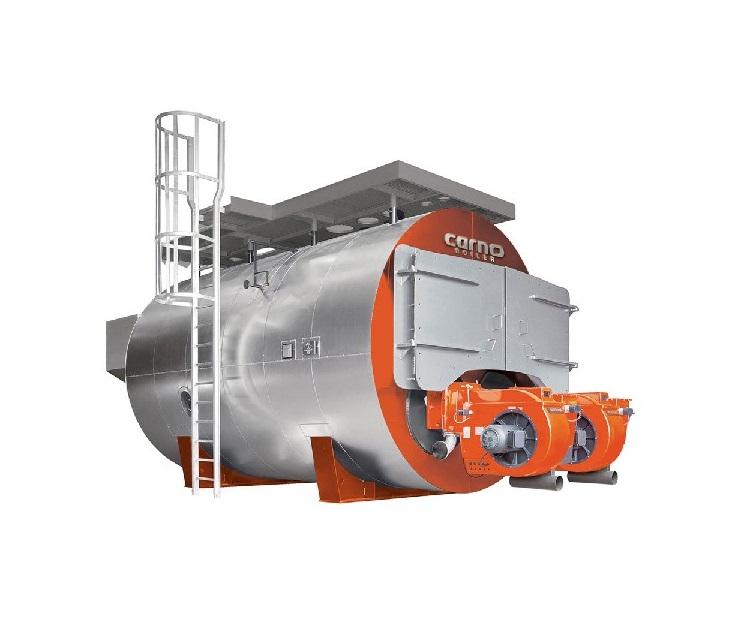

Features of two-furnace Cartobuiler firewall boiler:
Boilers with high capacity and working pressure in the form of three passes or four two-pass passes
Designed according to EN12953 and B.S.2790 and ISIRI 4231 national standard
Capacity from 16000 to 30,000 kg per hour with a working pressure of 10 to 20 times
With two efficient cruising furnaces and high thermal level
