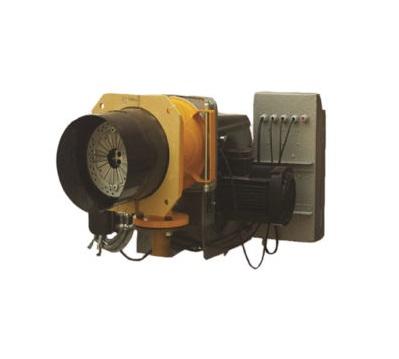

Gas Burner PM5-PGT-213 ParsMashal

Pars gas burner, PM5-PGT-213 torch, has Madas gas line.Pars gas burner, PM5-PGT-213 burner, has two-stage combustion.When choosing a burner, pay close attention to the diameter of the burner flame tube to allow the above pipe to enter the boiler and install the burner.Also, Pars Mashal PM5-PGT-213 gas burner has the ability to accurately adjust the combustion process in order to achieve high efficiency and reduce fuel consumption.In general, when choosing a burner, in addition to the need to pay attention to the type of burner fuel, it is necessary to consider about 20% more than the capacity of the boiler or heater combustion chamber for various reasons.Also, if the gas pressure of the burner feeder is higher than 2 pounds (15 or 30 to a maximum of 60 pounds), it is necessary to install a gas regulator with the right size, working pressure and suitable gas flow at the beginning of the burner gas line.Installing a gas filter with the right size and working pressure after the quarter round gas valve and before the gas regulator and electric shock or gradual gas valves of the burner, is one of the first equipments required for the gas line in gas burners.If the gas line pressure is 2 pounds, it is necessary to use a balancer to adjust and balance the slight changes in the gas pressure of the gas burner with the size and flow required by the burner gas at the beginning of the gas line.From the maximum heating power distribution of gas burners to 9200, the maximum amount of gas burner consumption per cubic meter per hour is obtained, but due to the installation of a thermostat on the boiler and the command to cut off the burner after heating the boiler water, practically "fuel consumption" Depending on the temperature and season, between 30 and 70 percent of the number will be above.Gas burner function:The inlet air flow is controlled manually or motorized by the air damper installed in the burner body.In terms of performance, gas burners are divided into types of blowers or fans, as well as types without fans (without sound). The burners used in apartment packages are gas-type without blowers and silent.The gas burner is designed to ignite natural gas and the volume or flow of gas fuel required in these burners is controlled by an electric valve after passing through the gas filter and the air required for their combustion is provided by a blower mounted on the motor shaft. Will be.The gas stream passes through a filter, mixes with the combustion air and is ready for combustion. If the combustion air pressure is too low or the gas pressure is more or less than the desired value, this is felt by the built-in pressure sensors and the burner is extinguished by pressing the air and gas switches via the relay steering.
