Duct split 60CN1-R13C Universal

Universal
Iran

Universal 60CN1-R13C universal duct split duct with the ability to create cooling and heating in a capacity of 5 tons of refrigeration, suitable for rooms with an area of ​​125 to 170 square meters.
In general, Universal Duct Splits are produced in capacities of 2 to 5 tons of refrigeration with a new single-stage compressor and multi-speed motors and high static air conditioners and high-grade A-level evaporators with high seasonal energy efficiency according to the latest technologies in the world. They turn.
Before choosing and ordering any of the above duct splits, pay attention to the issue of the single-phase or three-phase power required, as well as the power consumption amp according to the voltage of your area and the power and specifications of your unit's electricity meter.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

Duct split 60CN1-R13C Universal

Compressor

New powerful and low-power Copeland / Emerson scroll compressor with more compression capability and higher working pressure, which makes it possible to achieve maximum efficiency in the shortest time with R410a refrigerant gas.

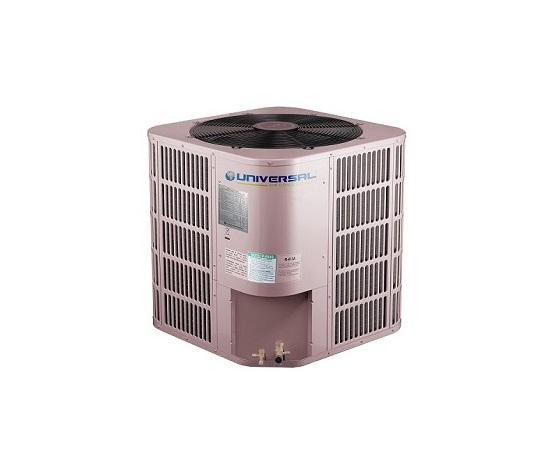

condenser

Balazan type condenser with maximum heat transfer and natural air flow
Two-row condenser with a thermal level of 15% higher than the previous type, which increases the heat transfer output of the device to 15%.
Ability to operate up to 52. C while maintaining capacity
Designed with a more powerful compressor, it allows you to install up to 46 meters in height, all high-rise projects need
The body of the device is tested from thick galvanized sheet with corrosion-resistant powder coating up to 500 hours of salt spray.
Stronger condenser fan with metal blades designed to move maximum air and minimum sound level
Refrigerant

Compressor optimized with R410a refrigerant gas and environmentally friendly
Protection

Unconditional warranty of compressor device Bringing compressor protection by various protection systems (flow control, temperature control, pressure sensor, etc.)
operator

Grade A evaporator has a maximum heat transfer using nanofine technology with an improved heat transfer coefficient of up to 15% higher than the normal type.
Converter

Use internal condenser and evaporator grooved pipes to maximize heat exchange and reduce power consumption

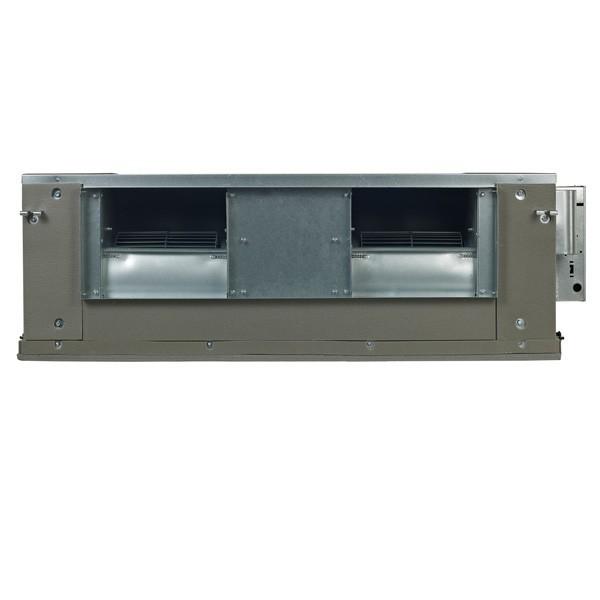

Features of the indoor unit Duct Split Universal Balazan Model 60CN1-R13C
Internal unit

The body of the device is tested from thick corrosion-resistant galvanized sheet to 500 hours of salt spray.
High centrifugal centrifugal fan with 130 to 200 Pascal and aeration power of 1100 to 2400 CFM
Can be installed on both sides of the device
The complete disassembly capability of the device from below, provides the possibility of service and maintenance and easy and fast access to all components of the device.
Two-stage refrigerant expansion in indoor unit and reduction of refrigerant loss in piping route
Fan

Powerful 4-speed waterproof fan
Forward-curved fan blades to reduce static pressure drop and higher aeration volume
Dynamic fan balance with magnetic bearings and closed ball without the need for lubrication and workable at higher temperatures
Canal up to 17 meters and throw at least 4.5 meters at the valve location
The blades and fan body are made of corrosion-resistant galvanized sheet tested for up to 500 hours of salt spray
Sound and heat insulation

The internal and external body of the device insulated with thick sound-absorbing foam, allows the use of high volume air transfer in the indoor unit and reduces noise and the ability to install indoor apartments and office buildings.
Filter

It has an antibacterial and anti-allergy washable filter with easy access

Product Specifications

Energy consumption label
A
Internal panel installation position
Built-in ceiling
Operating conditions
Temperate
External static pressure (Pa)
190
Cooling capacity (BTU / h)
"60
Heating capacity (BTU / h)
64000
Cooling capacity (tons)
5
Heating / Cooling Current (Amp)
9.2
Indoor unit sound level (Db)
56/52/49
Indoor unit weight (Kg)
77.5
External unit weight (Kg)
102
Compressor type
Scroll
Inverter kit (low consumption)
does not have
Refrigerant gas
R410
Liquid tube size (inch)
8-Mar
Gas pipe size (back) (inch)
08-Jul
Dimensions of indoor unit (mm)
1200x400x691
Aeration volume (CFM)
2400/2250/1850
