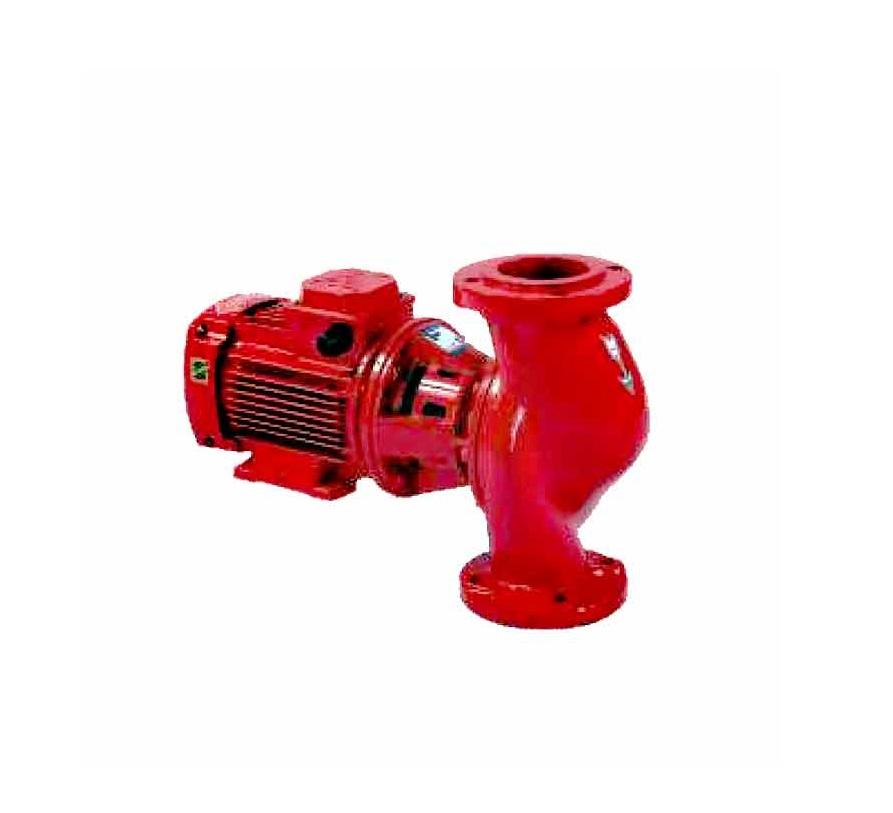

Heat circulator pump PD 37 Azad Alborz
Azad Alborz
Iran
PD 37 pump with alternating power is 4.3 hp (0.55 kW) and its inlet and outlet size is 1/2 - 2 inches. The impeller material of this pump is polycarbonate and fibrous polyamide (resistant to corrosion). And sediments), its body is made of cast iron and its shafts are made of stainless steel.
As we know, the two main characteristics of pumps that distinguish them from each other are the amount of head and the amount of flow (the amount of fluid volume transferred per hour) that the use of the pump with these two characteristics makes sense. The maximum head in this pump model is 22 meters and its maximum flow is 130 cubic meters per hour.
The pump is also single-phase and consumes a maximum of 3.9 amps.
As we know, the two main characteristics of pumps that distinguish them from each other are the amount of head and the amount of flow (the amount of fluid volume transferred per hour) that the use of the pump with these two characteristics makes sense. The maximum head in this pump model is 22 meters and its maximum flow is 130 cubic meters per hour.
The pump is also single-phase and consumes a maximum of 3.9 amps.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Heat circulator pump PD 37 Azad Alborz
Attributes :It has standard electric motors with low power consumption of Electrogen CompanyAlborz Azad Company has an exclusive chassis to silence the electric motorIt has a mechanical floodHas spring couplingFluid temperature in sealing with mechanical seal seal: from 50 to 140 degrees Celsius.
Product Specifications
Electric motor power (HP)
3.4
Dubai (GPM)
130
Head (Ft)
22
Power consumption (HZ – Ф– V)
50 - 1 -220
Engine Speed (RPM)
1450
Material of butterfly
Poly amid
Body Material
Cast iron
Operating temperature (c)
50 - up to 140
Inlet and outlet size (flange)
2/1/02
Power consumption (A)
3.9
