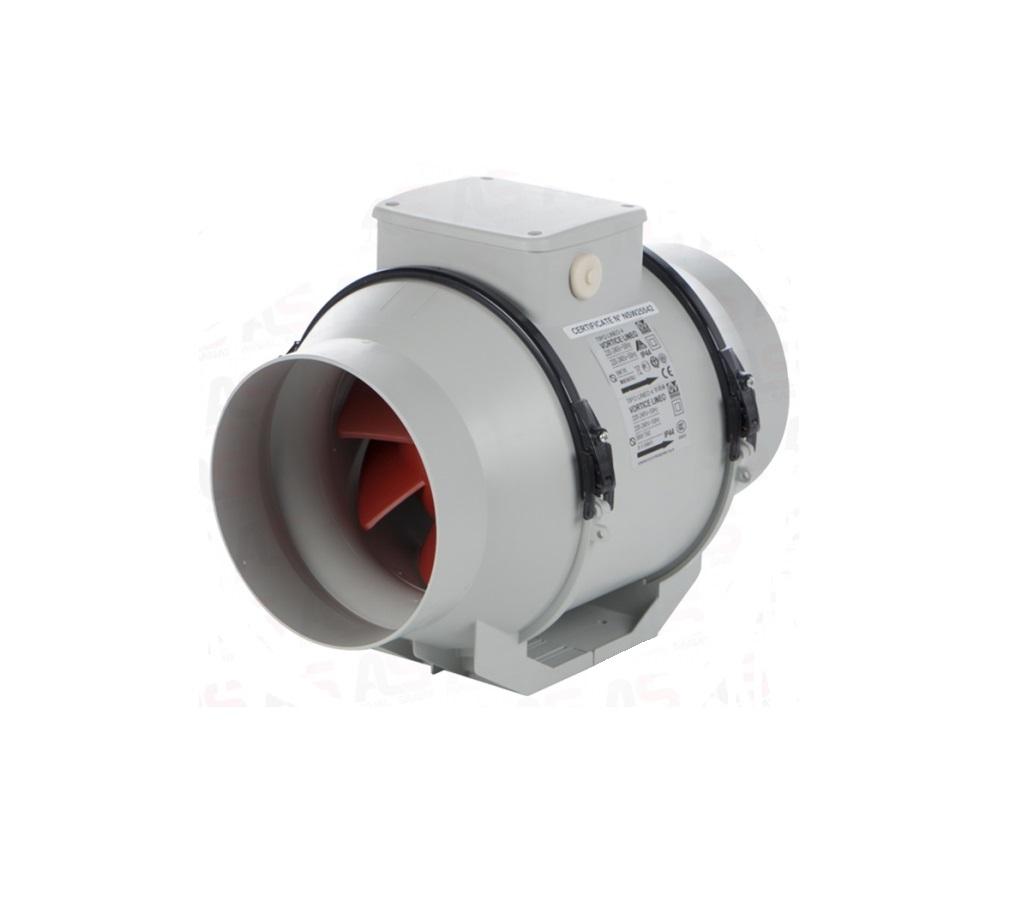

Interval ventilation LINEO 100 V0 Vortice
Vortice
Iran
LINEO series interfacial fans have many applications in various home, office, small and large industries due to their easy-to-install appearance and low space occupancy.
You can also make a price as a seller
Request a price to negotiate and get a better offer
similar products
Interval ventilation LINEO 100 V0 Vortice
Attributes :
- Non-flammable V0 resin plastic body- Has an AC motor with two speeds- Ventilation rate from 180 cubic meters to 255 cubic meters- Vertis speed controller- Has a thermal thermogard inside the engine
Product Specifications
Application
Home / Food / Pharmaceutical / Commercial Office Centers / Health Centers / Restaurants
Voltage (V)
220
Power (w)
23
Consumption current (A)
0.09
Number of engine bridges
2
Thermal class
Class II
Degree of protection (IP)
IP44
Aeration power (m3 / h)
180 ~ 255
Maximum pressure (PA)
161/9
Sound (db)
39.4 ~ 30.7
Engine Speed (RPM)
Two speeds: 1520 and 2030
Butterfly dimensions (cm)
10
Output cross section (cm)
Round - 9/6
Dimensions of the inlet (cm)
Round - 9/6
Material of butterfly
Non-flammable plastic
Frame dimensions (cm)
30.3 * 18.8 * 21.1
Frame material (body)
Non-flammable plastic
Varzen (Kg)
1.8
