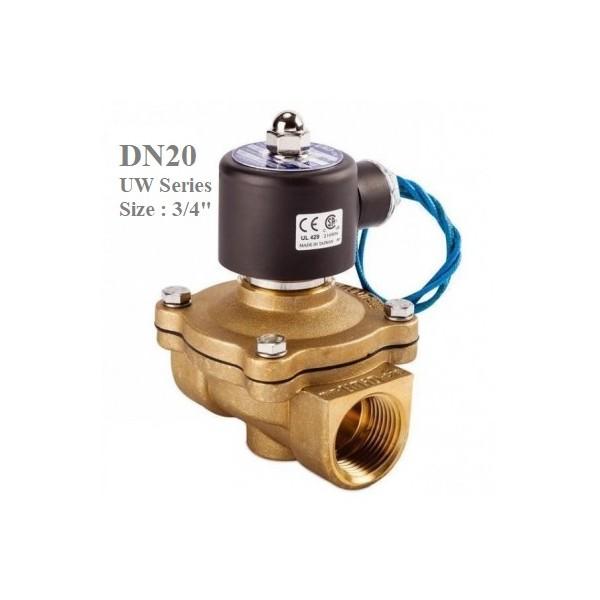

Electric faucet UW -"3/4 Unid

This water solenoid valve has a connected diaphragm and, as its name suggests, is produced and marketed in a size of 4.3 inches. They are "closed" and do not conduct fluid. They can also be used in the "unid" solenoid valve of the UW series, size "3.4" very low pressure, because their design is such that they can be in Too little pressure will cause the fluid to pass through and cause no damage.   Attributes :Can be used for a variety of fluids such as water, air and light oilsIt has a 220V-AC coilAlso, these products can be provided with 110V-AC, 24V-AC, 24V-DC and 12V-DC coils. Obviously, the presentation of each of these bobbins will make a difference in the final price of these valves.The minimum working pressure of 0.5 bar The maximum working pressure in these products is 7 bar.Fluids such as silicon (up to 130) C), viton (up to 130) C) and EPDM (up to 130. C) can also be used if the required standards are met and the product is more efficient.Note that if the pipeline and water supply network are clean and free of any contamination, the durability and performance of these solenoid valves will increase significantly.To prolong the life of this product, it is better to install Y-Line in the front part of the electromagnetic valve.The power consumption of these solenoid valves in direct current (DC) is equal to 1- and +1% and in alternating current (AC) is equal to -10 and +10%.Unid electric water valve (unid) UW series size "3/4 must be installed horizontally and its installation vertically is not recommended at all.In the case of liquid fluid, the minimum fluid temperature should be -5. C and the maximum temperature should be 80. C.Note that these solenoid valves are not suitable for the passage of liquid fluid at very high temperatures and the passage of solids (liquids containing solid particles).If the plumbing standards are not observed, liquid corrosion will occur and it will not pass properly in these valves.If the viscosity of the liquid is more than 20 CST, the use of UW series valves is not recommended.Dimensions: D: Depth: 48 cmH: Height: 107 cmL: Length: 70 cm
