Channel temperature sensor HDT-114P Rayan Elec
Rayan Elec
Iran
Ryan Company is one of the successful manufacturers of safety control equipment, including channel temperature sensor, which produces high quality products in line with the highest standards of quality assurance, relying on technical knowledge, experienced specialists, as well as advanced machinery and equipment.
Temperature sensors are an integral part of air conditioning control and automation systems and air conditioners. These sensors read the temperature of the ambient air, which in most cases is the temperature of the air return duct to the air conditioner or the air outlet duct from the air conditioner, and sending it to the controller sends control correction signals to the actuators by the controller or PLC. Sometimes these sensors are only used to display the desired point temperature.
Temperature sensors are an integral part of air conditioning control and automation systems and air conditioners. These sensors read the temperature of the ambient air, which in most cases is the temperature of the air return duct to the air conditioner or the air outlet duct from the air conditioner, and sending it to the controller sends control correction signals to the actuators by the controller or PLC. Sometimes these sensors are only used to display the desired point temperature.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products

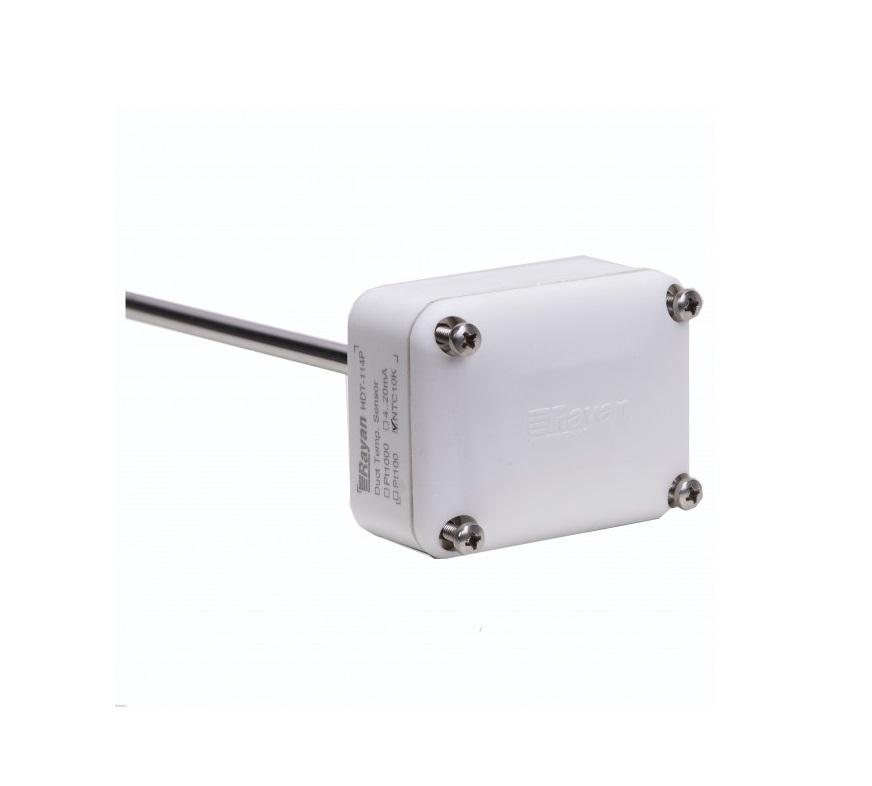

Channel temperature sensor HDT-114P Rayan Elec
Attributes :

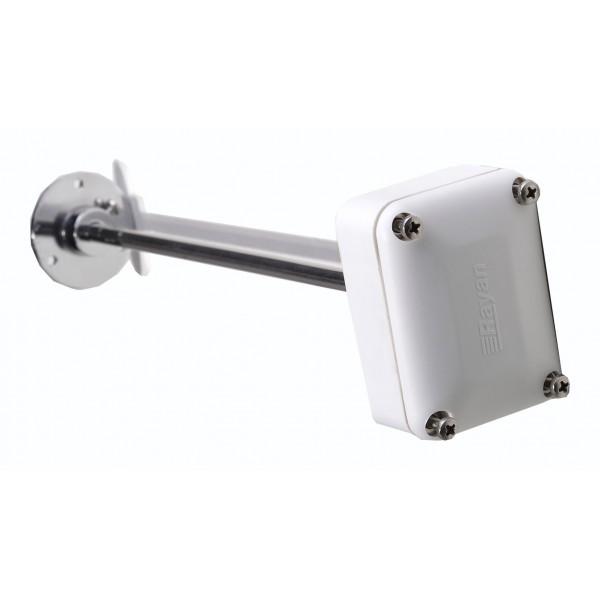

Ryan channel temperature sensor has an aluminum mounting base for sensors on ducts and air ducts and can be easily installed on galvanized or steel channels. This sensor has a door protective overing to increase the protection of the sensor against water and dust penetration.
The distance between the temperature sensors and the controller depends on the environmental conditions in terms of electrical and electromagnetic noise, as well as the thickness and type of cable used. It is possible to increase the distance in shielded and thicker cables.
The PT100 and PT1000 channel temperature sensor have a 3Pin terminal for three-wire headbands.
It is possible to connect this sensor to PLCs and controllers that have RTD analog input.
Product Specifications
Connection type
Channel
Body Material
Flame retardant polymer
Temperature setting range (C)
70 ~ 20-
Element length (cm)
30
Element diameter (mm)
8
Sensor output signal (K)
Pt100 / PT1000 / NTC-10
Sensor element material
SS304
Dimensions (mm)
60 × 340 × 80
Cable input
Gland PG-9
