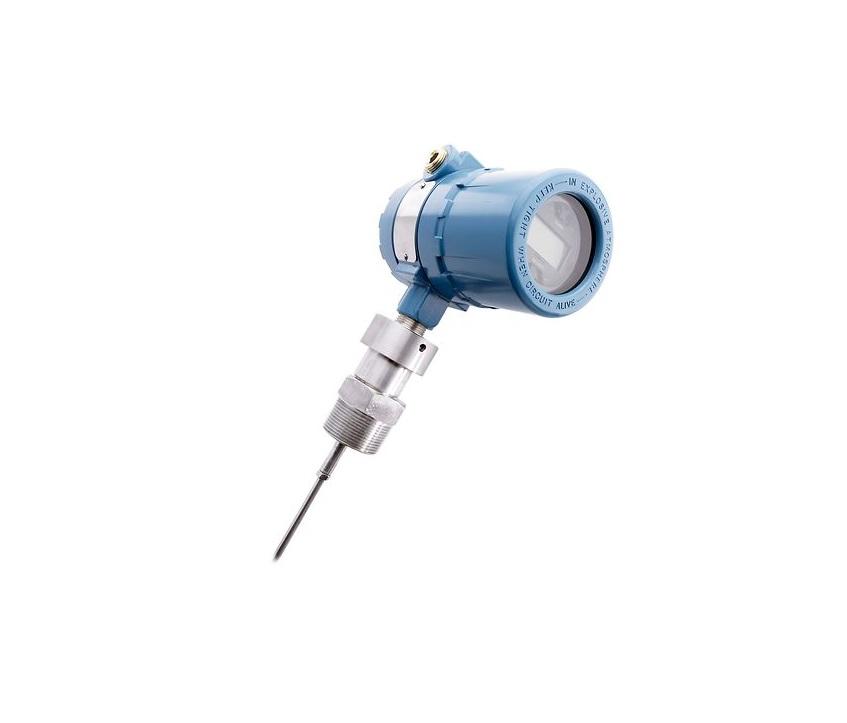

Radar level transmitter 3300 Rosemount
Rosemount
United States
Rosemount is one of the most successful manufacturers of precision instrumentation equipment, including surface transmitters, which rely on up-to-date European technical knowledge, experienced specialists, as well as advanced machinery and equipment of quality products in line with the highest quality assurance standards in Europe. Produces.

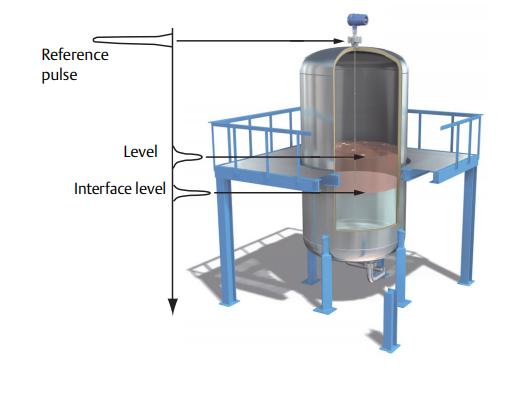

Radar Fill Level Transmitters are used to detect the level of fluid by transmitting radio waves. These transmitters are mounted on top of the fluid-containing tank and, like radar, send radio waves to the fluid surface inside the tank and receive reflected waves. The time of sending and returning waves indicates the fluid level inside the tank.
Radar Fill Level Transmitters are used to detect the level of fluid by transmitting radio waves. These transmitters are mounted on top of the fluid-containing tank and, like radar, send radio waves to the fluid surface inside the tank and receive reflected waves. The time of sending and returning waves indicates the fluid level inside the tank.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Radar level transmitter 3300 Rosemount
Accurate measurementEasy maintenance without re-calibrationEasy installation via two-wire technologyHigh flexibilityThe following should be considered when choosing radar level transmitters:Working temperature rangeThe structure and type of tankThe type of fluid inside the tankLack of another object in the measurement range for proper operationFeatures and technical specifications of Rosemont 3300 radar radar transmitter:Maximum measuring range 77 feet (23.5 meters) from the top reference pointHow it works: Radar guidance using TDR wave technology (reflection amplitude time)0.2 ± inches (5 mm) for the probe 6.16.4 feet (5 m)0.1 ± ± Measuring distance for rigid probe> 16.4 feet (5M)0.15 ± ± Measuring distance for flexible probe> 16.4 feet (5 m)Two-wire power supplyTemperature: (150 +) - (40-) degrees CelsiusPressure: up to 40 times4-20 mA outputIndivisible digital displayPolyurethane enclosure covered with aluminum or stainless steelDegree of electrical protection IP66ATEX RefractoryCSA explosionFM safety explosionIECEx Safety Explosion
Product Specifications
Min / Max ambient temperature (liquid) (C °)
150+ or 40-
Maximum pressure (bar)
40
