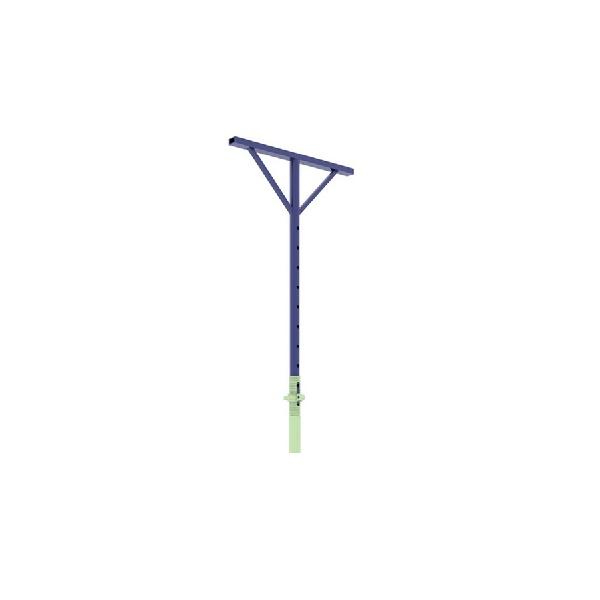

Ceiling support jack Arman Abzarbeton

The ceiling support jack, also known as the metal jack, telescopic jack and metal candle, is made at different heights based on minimum height (when closed) and maximum height (when open) and pipe thickness and diameter. The loads are different. It is also capable of adjusting the desired height between the maximum and minimum height in each jack by means of a nut mounted in the middle of each jack. Due to the importance of resistance of this device to the pressure of the loads and preventing bending and shedding of the design according to the international standard principles, it has been one of the priorities of this complex, which with great efforts of the specialists, has been able to obtain the EU CE Quality Certification. They were specially made for metal jackets.

The maximum bearing capacity of the ceiling support jack is 1500 kg. The use of ceiling support jacks in scaffolds over 4 meters high is not recommended and in this case modular scaffolding is technically better. The inner tube of the ceiling support jacks is 5 cm in diameter and the outer tube is 6 cm in diameter and the thickness of the pipe is 2 and 2.5 mm.
