Polyethylene high pressure joints Pars Ethylene Kish

High pressure joints are used for pipes, valves and high -pressure water, gas and other fluids. Polyethylene high pressure joints are mounted on high -pressure polyethylene pipes and are often produced in a mate, and all high -voltage connections are single -wall fittings mounted on single -wall polyethylene pipelines. High pressure joints include a variety of three -way, knee, conversion and flange at high pressures and in different sizes.

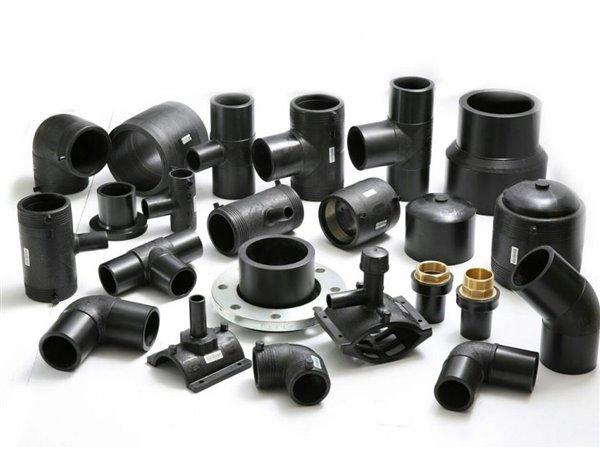

Types of high -pressure polyethylene joints

• Mitri's high pressure joints (welding joints)

• Electrofogenic high -pressure joints

• High -pressure screw fittings

• Injectable high -pressure fittings

• Flangular connections

Mitri's strong pressure connections

Mittering joints or polyethylene welding fittings are the best type of high pressure joints for polyethylene pipelines. These types of joints, if they are produced by the standard of the same pipeline, will be more resistant to the pipe itself. This type of welding fittings are manufactured according to the DIN16936 standard. It can also be taken into consideration in the dimensions of the standard and according to the customer's request and order, and these connections can be converted into custom and specific connections.

High -pressure electrophobic joints

Electrofogen joints are the most reliable type of polyethylene fittings that are manufactured and marketed in different dimensions and sizes. This type of connection is used because of the mechanics and the excellent connection process for high -risk lines such as gas transmission lines. Electrofogen joints have several problems, electrofigen fittings are often imported, and the high price of this connection is that with the increase in size and work pressure, the price of the connection is very high. Another disadvantage of these connections that have caused problems in the market for these types of connections.

High -pressure screw connections

The screw fittings tolerate up to 10 atmospheres because of the type of screw structure, and most manufacturers do not place them in high pressure connections and are in the middle of this table. The size is 110 mm and this size is mostly used for irrigation of agricultural land and gardens. It is recommended that screw joints are not used in high -pressure and sensitive lines.

High -pressure injection connections

Injectable joints are produced in different working pressure of different dimensions and are priced at a reasonable price. But there are also major flaws in these types of connections: first, the main problem is their production process that may be inside the wall of these Mac and empty space, the other is the type of materials that their grade grade with a polyethylene pipe grid. To be different, and in the practice of welding, the pimples and the smelling are not well done and the molecular transplant is not properly produced. The use of injectable connections in high -pressure and sensitive lines is not recommended.

Flangi connections

Flunge joints are often used to connect polyethylene pipes and fittings to valves and other types of pipes, but are also used for connecting (joints and pipes) and pipes to polyethylene. The flange connection is attached to the welding method at the end of a flange connection and the wall is placed between the pipes and the rings are closed by the bolt. (Adding any oil, grease and material to the gasket and junction and may cause leakage). It is sure and will have a very long life.

Polyethylene and boiling fittings

Knee 30 degrees Polyethylene
Knee 45 degrees Polyethylene
Knee 60 degrees Polyethylene
Knee 90 degrees Polyethylene
Three -way 60 degree polyethylene
Three -way 90 degree polyethylene
Polyethylene
Polyethylene
Pavement
Polyethylene base flange
Polyethylene cap
Metal rings under pressure 1 and 2
The metal rim under pressure 6
The metal rim under pressure 10
Pressure metal rim 16
The metal rim under pressure 25

Purchase and price of high pressure polyethylene fittings, Pars Ethylene, Kish
