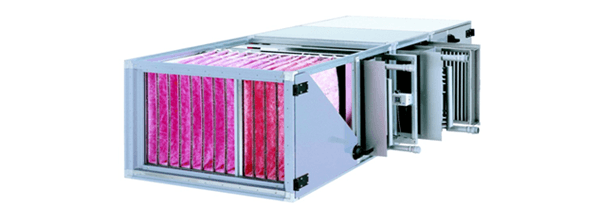

Air handler KG – TOP Mabna

This model has a variety of applications:
Fans equipped with Energy Recovery and Heat Recovery System.
Air conditioners that are manufactured for garage and industrial units only for the purpose of air extraction.
Air conditioners used for industrial use in the kitchen are fitted with two-sided radial fans and are made of stainless steel and feature high-efficiency filtration. They are also highly resistant to corrosion and fats.
Two-story air conditioners with integrated air supply, air return, air mixing and air exhaust.

Other features of this model include:

• For high humidity salons, such as pools, which have high latency and high humidity. Therefore, in these applications, the type of air conditioner should be proportional to the temperature and humidity of the space. Also available in high humidity climates.
• For public spaces with high traffic volume, respiration and transpiration, and should provide immediate comfort.

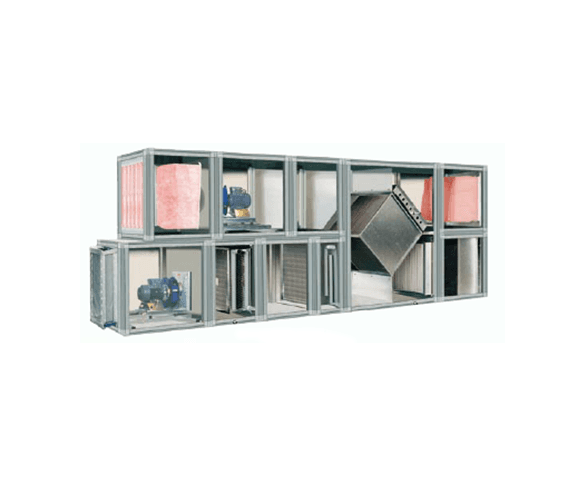

• It is possible to arrange different aerial parts in different modes (Side By Side, Double Stacked, Vertical and Lying Horizontally) depending on installation and operation conditions.

• Equipped with intelligent systems: All controls are fully automatic and this type of system can be connected to the BMS building intelligent control system.
• Heat Recovery System: Heat Exchangers with 92% efficiency. In areas where the energy price is high and also in applications where the use of recirculated air or where there is a high amount of fresh air entering the system can be recycled from the building as a suitable source of savings In energy, without spending money.
• One of the features of Wolf's aeration system is the use of microscopic filtration technology in this system that can use any type of return air without leaving the air with the slightest contamination.

Wolf KG-Top Specifications:

1- Ability to supply air from 880 cfm to 60,000 cfm
2. Low weight and very small dimensions compared to similar models and equal aeration capacity
3. Ability to embed multi-part specific
4- Ability to install any type of heat recovery system of rotary type, counter current, counter current flat
5- Ability to install any fan technology on the fan (Standard Fan-Free Running Fan- EC Fan)
6- Has complete and advanced control system to control all control parameters
