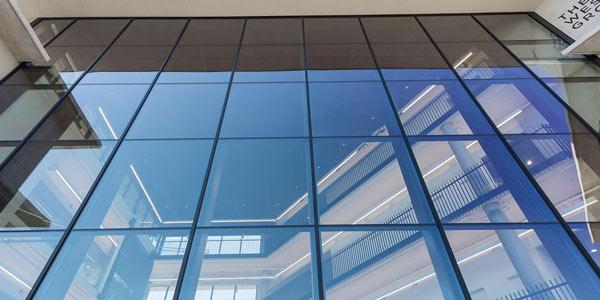

Curtain wall view TARADIS

Curtain wall is one of the types of facades that add beauty and effect to the building. It is one of the self-standing structures that do not apply a dead load to the building and actually put all their weight on the curtain wall structure itself. The profiles on which the curtain wall is installed are called lamellae. Lamel facade has been one of the modernization facade systems that has a standing structure. This facade can be executed up to four meters high in the best case. The width of this metal facade varies between 34 mm and 50 mm. One of the important reasons for using lamella is that this metal structure is very light due to the use of aluminum.

Advantages of lamellar facade

Steel and wooden samples cause problems in insulation due to the problem of corrosion and high weight. Due to moisture insulation and more ventilation, high jig and fixture ability, high strength at the same time lightness have been considered.

These advantages have caused designers and construction engineers to be very interested in using the curtain wall facade. Other benefits of lamellas include:

With hidden and non-hidden opening
Use of double and triple glazing
It has different sizes
Use different caps
Easy installation and short execution time of these types of facades
Easy installation in a short time

Frameless curtain wall views

Frameless type of building facades are classified as dry and ventilated facades. In these types of facades, there have been changes compared to the previous curtain walls, which have added to its advantages and its defects have been solved to some extent. Previous curtain wall facades were called frameless facades on iron. The iron frameless system had weaknesses. For example, weakness in sealing, insulation, etc.

Implementation and construction of curtain wall aluminum window

Regarding the method of implementing the curtain wall facade, one thing you should know is that these facades actually include a series of chassis or lamellas that are installed around the main body of the building. The weight of the structure itself and the glass and materials used in it will only be applied to the curtain wall structure itself. As a result, it will not add extra weight to the building. Curtain wall facades are a kind of shield against environmental and weather factors. This case can be considered one of the most important factors that make this structure one of the most popular facades among building facades. Another advantage of the curtain wall facade is to raise and improve the resistance of the building against natural disasters such as earthquakes. Due to the important advantage that the curtain wall facade puts its weight only on its structure, it makes there is no dead load on the building. This will increase the resistance of the building against earthquakes.

The role of lamellae on curtain wall structures

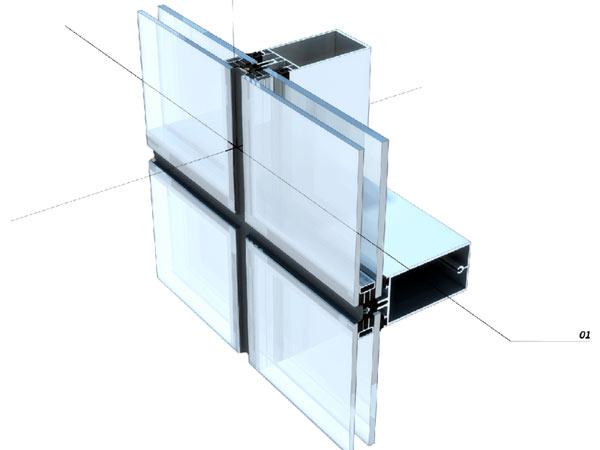

The lamellae used in curtain wall structures are vertical and horizontal and made of iron, steel and aluminum. Horizontal lamellas are called transom and vertical lamellas are called mullion.

Curtain wall insulation

Contrary to popular belief, insulation in curtain wall facades is very good. According to the design that the engineers have considered for it and applied to it. This possibility is available to lock the lamellas together and increase the ease of work and decrease the installation time. Also, the placement of the glass between the built-in grooves. EPDM tapes can also be used to insulate this type of facade. The grooves that are considered in the design of lamellas and curtain wall facade in general have many uses and one of these advantages is to create suitable insulation for this type of facades. Thermal and sound insulation is one of the features of these types of facades and can be considered a protective factor against natural factors and protect the building against these factors.

Purchase and price of Taradis curtain wall facade from the market

Construction market is a network of manufacturers and suppliers of construction products, whose main purpose is to create direct and effective communication between suppliers and buyers of those products. This platform is an international multilingual platform that reviews and introduces specialized brands and construction products using technical specifications, videos and images. Buyers in the market building system can get to know the reliable sellers to buy the required products and get the goods at the lowest price. Buyers should refer to the market building system to see the prices of different facades and buy Taradis curtain wall facades.

Manufacturers and suppliers can register in the construction market system and by placing construction products and inserting the suggested price, they can increase the visits of their products and help buyers to make a safe and economical purchase.
