Analog Dome CCTV camera PV-E13290 HR Provision

Provision

CCTV is a protection system that comes with a set of equipment installed locally and one can observe with a local monitor. CCTVs may be used for a variety of purposes; in some cases they are supervised and sometimes used for control purposes.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

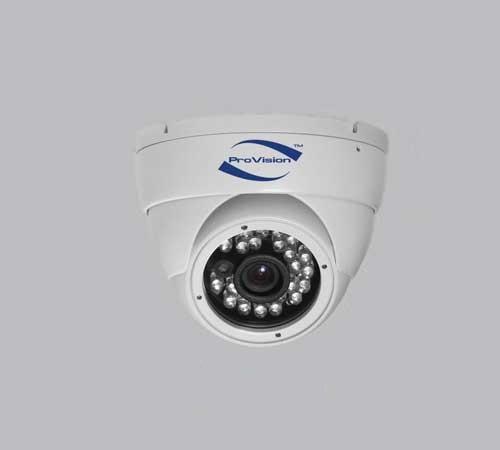

Analog Dome CCTV camera PV-E13290 HR Provision

The term dome means dome. As is clear from the meaning of the name of these cameras, the term trap refers to the body shape of this type of CCTV camera.

Applications of livestock cameras
Livestock cameras generally have non-industrial applications. The body of these cameras usually does not have much resistance to bad weather conditions, so their use is limited to office, commercial or residential environments.
These cameras are made in different qualities in the form of network, analog and AHD and there is no limit in terms of image quality.

Night vision of livestock cameras
Livestock cameras usually have IR night vision and this feature does not make much difference in their cost. Livestock cameras usually have medium night vision (between 20 and 30 meters) and if you need a long range for night vision, it is better to use a bolt camera or install an infrared projector next to the camera.


Angle of view of livestock cameras
Livestock cameras are divided into two categories in terms of lens type: Fixed lens and Varifocal Lens. Fixed lens livestock cameras are usually made with a 2.8mm (~ 85 °) or 3.6 (~ 70 °) mm lens, and verifocal livestock cameras are usually made with a 3-9mm (~ 35-80 °) or 2.8-12mm lens. ~ 25 to 85 degrees) mm.

Reasons to choose a livestock CCTV camera
Bolt and trap CCTV cameras are used to monitor indoor spaces. However, livestock CCTV cameras are more widely used indoors.

Bolt CCTV cameras are obvious and visible. Thieves and vandals can easily detect and destroy Bolt CCTV. If you are looking for a CCTV camera that is more difficult to identify and destroy, choose a CCTV camera.

The semicircular base of the livestock CCTV camera makes it difficult for thieves to detect the angle of view. On the other hand, the advantage of Bolt CCTV cameras is that they cover a wider area with 360 degree rotation. If you want a CCTV camera that is elegant and beautiful and more in harmony with the interior decoration of the building, CCTV cameras Choose a trap.

ویژگی های کلی

Resolution (pixels)
700TV Lines
Lens (mm)
3.6
Image sensor
"1/3 ""sony"
DSP + CCD
Effio-E 4140 + 673
CD Total Pixels
NTSC:976*494V"
Scanning system
60 Fields/Sec PAL:625Lines
System sync
Internal
Waterproof surface
IP 65
Minimum brightness
Lux / BW0 Lux-IR ON 0.1
S / N rate
52dB AGC OFF
White balance
ATW / AWC Switchable
Gain control
AGC ON / OFF Switchable
shutter
NTSC: 1/60 ~ 1/120000 Sec PAL: 1/50 ~ 1/120000 Sec
BLC Function
ON / OFF Switchable
IR LED
24PCSФ5IRLED
Video output
Composite 1.0V pp at 75Ohm
Gamma Correction
0.45
IR distance (m)
20
Auto IRIS
VIDEO / DC
Lense Mount
C / Cs / Vail-Focal Mount
Operating humidity level
Within 85% RH
Material
Metal
