Pinhole CCTV HAC-HUM3201B Dahua

Miniature CCTV cameras or pinholes or needles the size of a matchbox are the most common type of hidden CCTV cameras, the main feature of which is its small size. This hidden CCTV camera has small dimensions (about 3 by 3 cm) as well as a fixed lens and a microphone to receive sound from the desired environment. PinHole CCTV camera (or needle lens CCTV camera) due to the small size of the body and small lens, it is possible to record images wherever you want, even from a 3 mm hole.

Miniature CCTV camera applications
Due to the small size of the body, it is usually used in spaces where there is a need to view and receive images imperceptibly or there is not enough space for a bolt or trap camera, for example in previous years in vehicles such as buses and trucks. It was not possible to install a camera with a normal or large body, and a smaller camera had to be used, with the needle camera being the best and most appropriate choice. Needle cameras, like other CCTV cameras such as bolt, livestock and industrial models, are not of high quality and are mostly installed for small and well-lit environments (no support for night vision). The body of the miniature CCTV camera itself may not be small, but the lens mounted on this CCTV camera is very small and it is not possible to replace the lens in this type of body.

Miniature CCTV night vision
Due to the type of design and due to the special application, this body can not have IR night vision. The main reason for this is that due to the limited dimensions of the body and maintaining the size of the camera tip where the lens is located, the installation of night vision will not be possible by maintaining the standards of a small camera. To compensate for this weakness, quality sensors are usually used so that this camera can provide good vision in low light and can even be created to capture a good image in a good light environment.

Technology used
You may be wondering in which series of CCTV cameras this body has been produced? In response, we must say that both in HD CCTV cameras and in the network series, there is this type of body that the capabilities of the network needle camera are much higher than the HD needle camera. In the network series, unlike the HD camera series, you do not need a recorder and you can receive live images directly from the camera itself, enable image recording, set special video features such as high light capability and reduce image noise. And even in the newer series, transfer the image of the needle camera. View product samples

Miniature CCTV camera viewing angle
As we mentioned, it is not possible to change the lens in this type of body and they have a fixed lens. Commonly mounted lenses of this body and the combination of this lens with the dimensions of the sensor used in the camera can provide the user with a range of 2.8 mm lens with a minimum viewing angle of 83 to 115 degrees and a 3.6 mm lens with a viewing angle of 75 degrees.

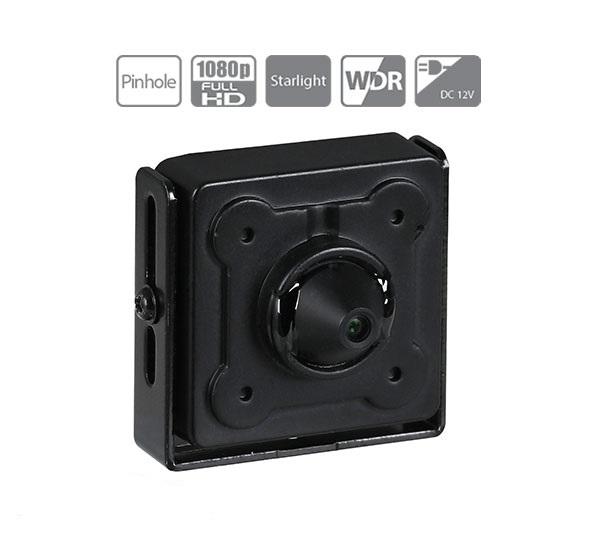

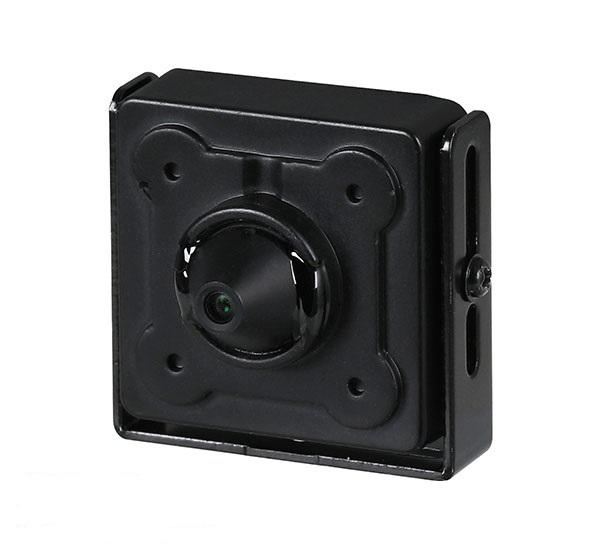

The above product is produced in dimensions of 35.5 * 29.9 * 22.1 mm with a weight of 0.09 kg and its output can be changed between HD and SD. This HDCVI CCTV camera uses a CMOS sensor with a diameter of 1 / 2.8 inches and a fixed lens with a focal length of 3.6 mm. This HDCVI pinhole CCTV camera has a power consumption of 1.2 watts and is also equipped with 3DNR (Digital Noise Reduction), WDR (Differentiation in the amount of light in different places) and Starlight (color display of images in the dark). This product, which is very small and can be used to view images in a completely invisible way, displays images with a resolution of 1937 x 1097 pixels.
