Fusion is a new technology used to create a connection between two optical cables, also called optical fiber welding, in which heat is used to connect optical fibers to each other. Welding of two optical fibers is done by a device called fusion.
This device generates heat by heating or melting the fiber optic fibers at the boiling point, which causes the two to weld to each other. In most applications, the best way to connect fiber optics in terms of quality and cost is fiber optic fusion.
Fiber optic fusion is actually done with the aim of reducing the scattering and reflection of light along the fiber optic cable. Electric arc heat is usually used for this purpose, but in older methods other than gas flame heat or heat from electric current passing through tungsten film may also be used.
Today, fiber optic cables are among the latest technologies and these cables have a multi-layered structure that to create a weld between them, these cables must be carefully and correctly cut and thoroughly cleaned.

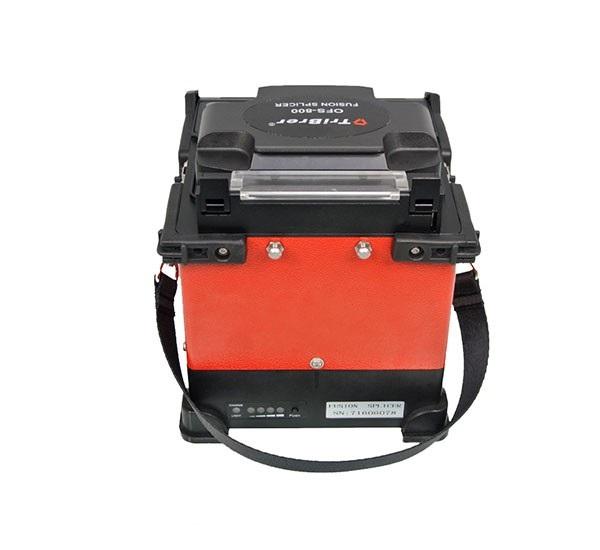

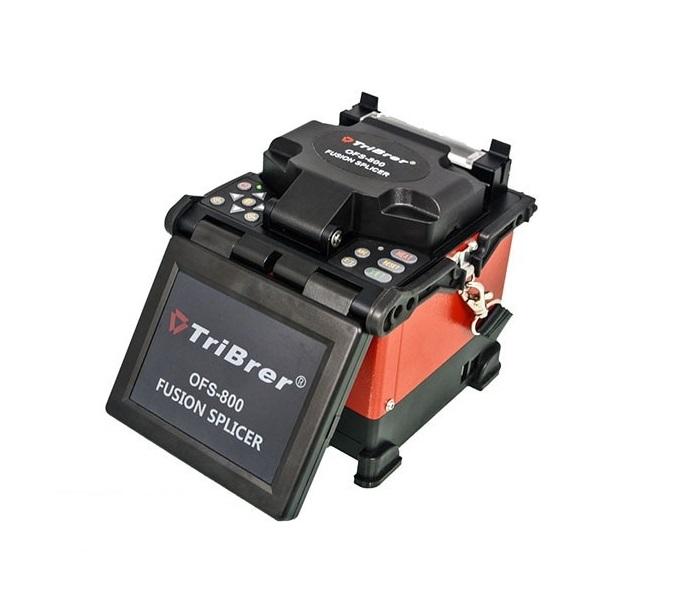

The above device is equipped with a 5-inch color LCD screen with high resolution and uses a heating time of 30 seconds and a boiling time of 8 seconds in normal mode with single mode fiber. This fusion device has a lithium ion with a capacity of 200 sample cycles and its fusion is done manually, semi-automatically and automatically. The OFS-800 fiber optic fusion device has a power supply that operates with an input voltage of 100 to 240 volts. Its output voltage is 13.5 volts with a current of 4.5 amps of DC type. This product has a strong body and resistant to shock, dust and moisture and is physically produced in the dimensions of 135 * 158 * 155 mm and weighs 1.98 kg and is sold in the network equipment market with excellent manufacturing quality. .
