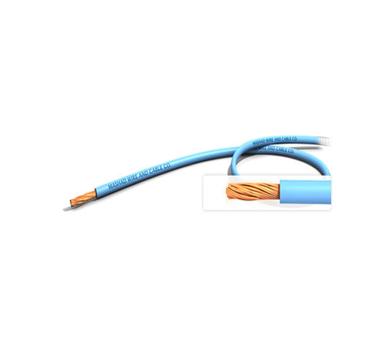

Multicore wire H07V-K Alborz

Alborz
Iran

The sprinkler wires are soft because they consist of a large number of thin twisted copper wires and have high flexibility and are therefore used in building wiring.The rated voltage of these sprinkler wires is 500 /. It is 300 volts and available at different cross-sections according to the passing current.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

Multicore wire H07V-K Alborz

The sprayer is a single-strand wire whose conductor is made of copper metal and the insulation used in the sprayer is a mixture of PVC polymer (PVC) of PVC / C polymer type.

Wire spreader is used inside electrical appliances and also for protection of lighting systems, in dry environments, inside pipes and under and on plaster, but using wire spreader (flexible wire or flexible wire) for direct installation on the cable tray, channel Cabling and tanks are not allowed.

The nominal voltage in the spraying wires is 300/500 V in the spraying wires up to 1 mm2 cross section and 750/450 V in the spraying wires with a cross section of more than 1 mm2.

Application of wire spreader:

Wire spreader, also known as flexible wire or flexible wire, is mainly suitable for installation inside electrical appliances and also for protection of lighting systems, in dry environments, inside pipes and under and on plaster. It is not allowed to use wire spreaders (flexible wire or flexible wire) for installation directly on the cable tray, cabling channels and tanks.

Sprinkler cables produce stronger magnetic fields due to reduced shell effects, but their use in the engine causes the engine to bulk up due to the use of separate insulation. The most important issue is the flexibility of the splitter wires, on the other hand they are very useful for short circuits, but it should be noted that splitter wires are much more likely to break than single-strand wires.

ویژگی های کلی

Standard
IEC 60227 02 and ISIRI 607 ​​02
Type
Wire Sprayer (H07V-K)
Rated voltage (V)
450-750
Hadi
Annealed copper Group 5
Insulation
PVC / PVC / C mix
Cross section (mm ^ 2)
1.5
Insulation thickness (mm)
0.7
