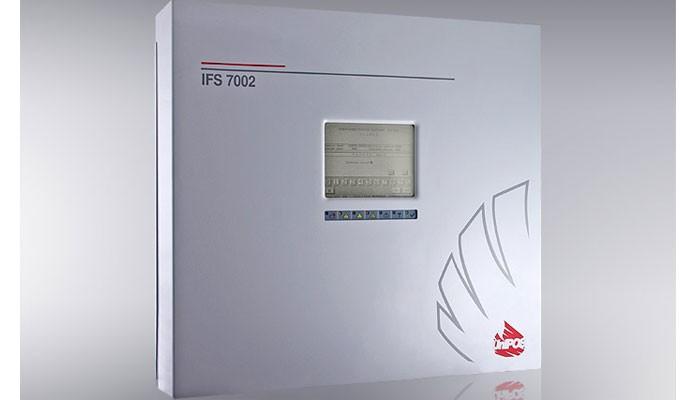

Fire Alarm Control Panel IFS7002-2 UniPOS

UniPOS
A fire alarm system has multiple devices that work together to detect smoke, fire, carbon monoxide and other emergencies and alert people through audio and visual equipment. These alarms can be automatically activated by smoke detectors and thermal detectors, or can be manually activated with the help of a fire alarm at specific fire alarm activation points. Alarms can be motor bells or beeps mounted on the wall. They can also be loudspeakers through which they can alert and then send a voice message to evacuate the location and to warn indoors not to use elevators.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Product Information

Specifications

Comments

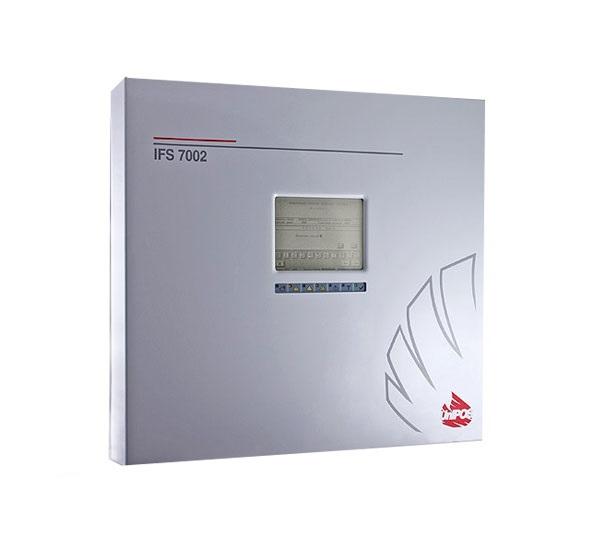

Fire Alarm Control Panel IFS7002-2 UniPOS

A fire alarm control panel is a device that connects to smoke detectors and, with a powerful diagnostic system, is notified of any problems such as sensor failure, power failure, etc. and sends the necessary signals to fix them. The IFS7002-2 Ion Pass Fire Alarm Panel is addressable, making it possible to pinpoint the exact location of any sensors after any malfunction or warning and attempt to fix them faster. This model of ion-pass control panel has two equipment networks or loops that have a resistance of 100 ohms and each of them can accommodate up to 125 addressable devices. The maximum number of zones in this fire alarm panel is 250 zones, each of which can accommodate 60 addressable devices. This addressable device is manufactured in dimensions of 100 * 445 * 480 mm and weighs 7.1 kg. In the market, protective equipment is sold as an important component of fire alarm equipment. The control panel of the IFS7002-2 has 220V AC power and has two backup batteries with 12V DC and 18 amps. The body of this device has IP40 protection indicating that it prevents penetration of objects one or more millimeters in size. The display on this model is a touch-screen LCD panel used for displaying messages.

Product Specifications

Marker
"LDC
Power supply (V)
220/230
Number of zones (number)
250
Dimensions (mm)
480 * 445 * 100
Weight (g)
7100
Degree of protection
IP40
Signals (number)
2
Maximum number of addressable devices in one loop (number)
125
Number of devices per branch (number)
32
Addressable devices in each zone (number)
60
Response time of activated sensor signal (sec)
Up to 10
Current intensity (A)
2 batteries with a voltage of 12 volts DC and a capacity of 18 amps
Outputs
2xCAN"
