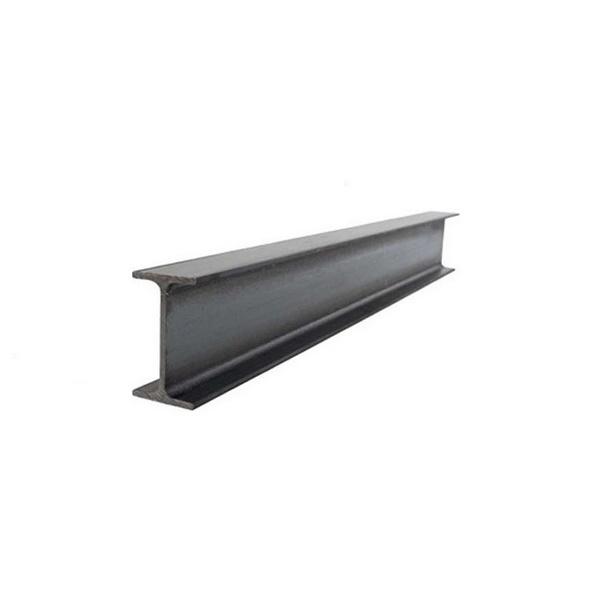

IPEAA beam 200 Jahan Foulad
Jahan Foulad
Iran
IPEAA type beam is produced in Iran and Europe and is I-shaped and the thickness of its wings is unchanged. IPEA beams in Iran are of interest to many engineers and building builders. The thickness of the wing and core of the IPEA beam is constant throughout the length of the beam.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
IPEAA beam 200 Jahan Foulad
IPEAA beams are used in construction in columns, trusses, beams and in covering honeycomb roofs and bridges. The thickness of the IPEAA beam wings at the beginning and end is quite uniform.
General advantages of using beams:
- Possibility of development after completion of the structure
- Ability to connect more pieces together
- High speed of execution and installation
- More use at high altitudes
مشخصات ابعاد و وزن
Height (mm)
196.4
Wing width (mm)
100
Thickness (mm)
4.5
Wing thickness (mm)
6.7
Radius of curvature of corners (mm)
12
Weight one meter (kg)
17.95
Cross section (cm2)
22.87
Minimum yield stress (N / mm2)
235
Tensile strength (N / mm2)
360
Maximum elongation (%)
26
