Total station R2 Plus Stonex

Stonex
Italy

Total station, or TST, is an optical device used in modern mapping to detail, accurately map tolls, industrial surveying, police department incident observations, crime scene interrogators, and others. They freely rebuild the scene of crime and are used by insurance companies. Total Station is a combination of electronic theodolite (transit), electronic distance finder (EDM) and software running on an external computer.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

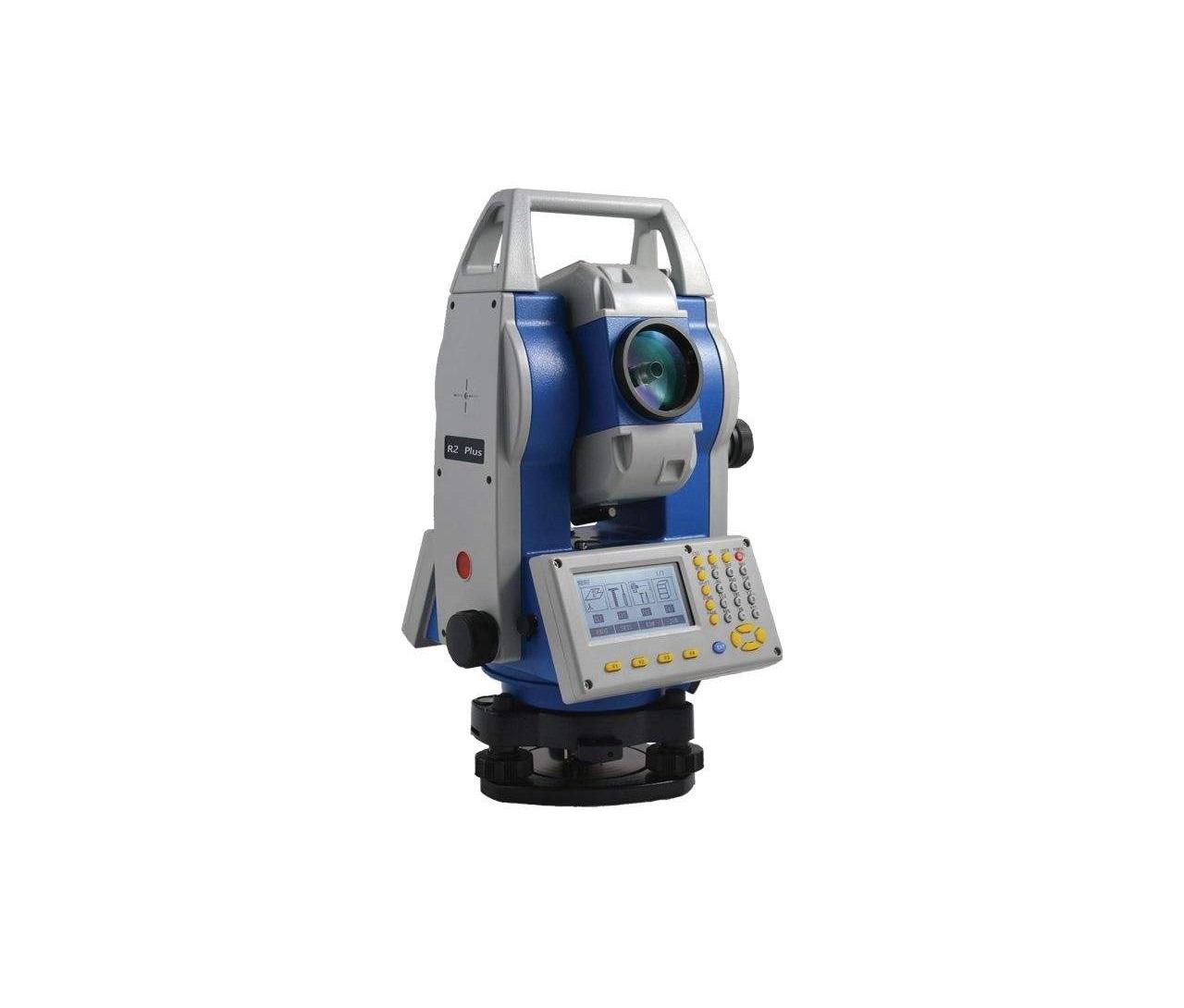

Total station R2 Plus Stonex

Surveillance Camera or Surveillance Camera (Total Station) is an electronic / optical instrument used for mapping and construction. Total Station is a digital theodolite equipped with electronic distance measurement (EDM) to read machine mileage to a specific point and a built-in computer to collect information and obtain advanced coordinate-based computing.

The robotic surveillance camera allows the operator to control the device remotely. This eliminates the assist of the mapping operator to maintain the prism and control the camera from anywhere.

Total Station is a very advanced device with the highest technology and most accurate measurement standards. This product, one of the most advanced surveillance cameras, is a creative and intelligent combination of an alignment device, a theodolite, and an electronic spacer. The STONEX R2 Plus Total Station has a precision angle measurement of 2 seconds and its horizontal and vertical axis movement system is infinite or clutch which will increase the speed of measurements.

It also has a very powerful yet accurate EDM capable of measuring up to 600 meters by laser beam. The internal software of this product is very similar to the Leica Total Stations and also has a very advanced and user-friendly data management and transfer software that is compatible with all versions of Windows and capable of outputting the IDX format from crops. .

Specifications :

-Clutch drive system (infinite)

- 2 sec angular accuracy

Trigger trigger button

- Leica-like software

-8 GB of internal storage

-500 meters laser distance

- Support for SD card up to 16 GB capacity

- Has data management software with idx output

ویژگی های کلی

Zoom (equal)
30
Accuracy of reading angles (s)
2
Internal memory (GB)
8
keyboard
Numerical letter
Single prism board (m)
3000
Board without charter (m)
600
Battery
Lithium-ion
Application
پروژه عمرانی"
Dimensions (cm)
20 * 20 * 36
Weight (kg)
6
Direct
Lens diameter (mm)
45
Field of view (at a distance of 100 meters)
1 degree and 30 minutes
Resolution (s)
1
Minimum focusing distance (m)
1
Laser class
I and III
Mini prism measuring range (m)
800
Horizontal lamp grading
0.002
Prolongation accuracy with prism (mm)
2 + 2
Prolonged accuracy without prism (mm)
3 + 2
Reflector plate (mm)
3 + 2
Screen type
has it
