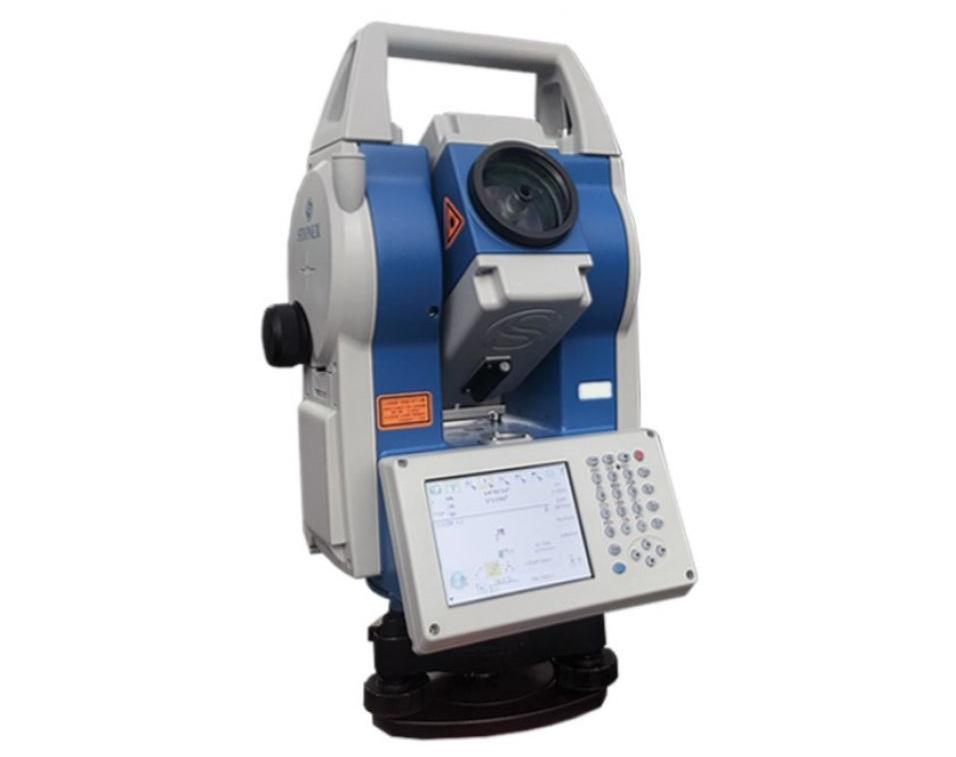

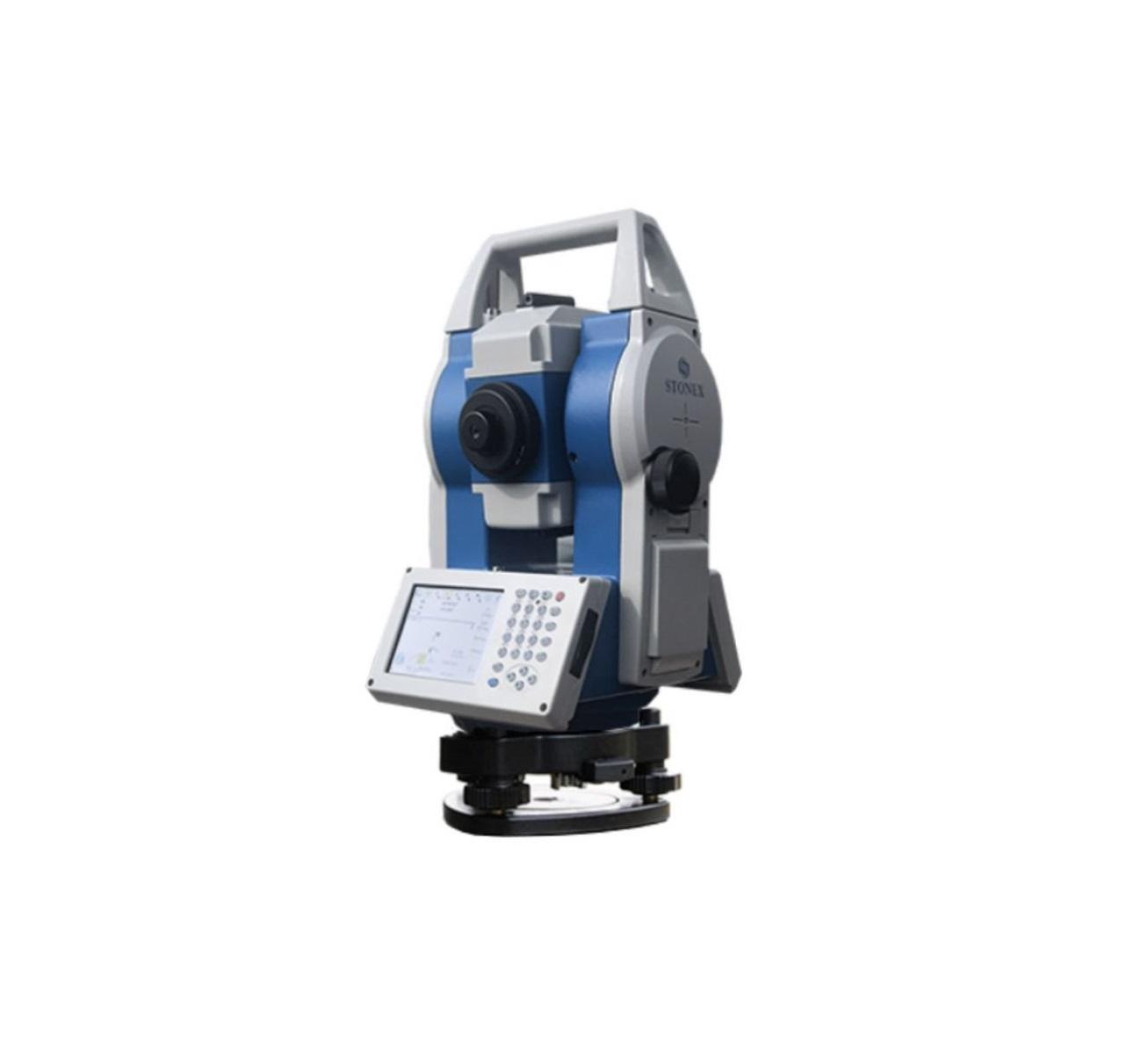

Total station R2W PLUS Stonex

Stonex
Italy

Total station, or TST, is an optical device used in modern mapping to detail, accurately map tolls, industrial surveying, police department incident observations, crime scene interrogators, and others. They freely rebuild the scene of crime and are used by insurance companies. Total Station is a combination of electronic theodolite (transit), electronic distance finder (EDM) and software running on an external computer.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Total station R2W PLUS Stonex

Surveillance Camera or Surveillance Camera (Total Station) is an electronic / optical instrument used for mapping and construction. Total Station is a digital theodolite equipped with Electronic Distance Measurement (EDM) to read the mileage of the device to a specific point and an internal computer to collect information and obtain advanced coordinate-based computing.

The robotic mapping camera allows the operator to control the device remotely. This eliminates the assist of the mapping operator to maintain the prism and control the camera from anywhere.

Among the types of surveillance cameras, Total Stations can be considered the most advanced and accurate of these devices. Total Stations are a combination of the Finder, the Spacer, and all sorts of sensors that are all in one package. STONEX Total Station The R2W Plus model is one of the most advanced Italian Total Stations with the latest technology in its construction. The large, high-quality display is on both sides of the device and is color and tactile. The operating system used on this device is Windows CE and can install applications compatible with this version of Windows. The installed and registered mapping software for this Total Station is FieldGenius from the Canadian company Microsurvey, one of the most professional, user-friendly and advanced mapping software in the world.

R2W Plus angular accuracy is 2 seconds and 2mm + 2ppm prism resolution. The distance measurement range in the laser-free mode is also 500 meters. The power supply is powered by two high-power Li-Ion batteries with a capacity of 3400 mAh each with a minimum operating time of 9 hours. The 4 GB R2W Plus internal memory allows the user to pick up unlimited number of points and also to easily access and use the desired files in the device memory.


Product Specifications :

Includes clutch drive system, Trigger button, 4GB of internal storage, mini USB ports and flash memory, built-in temperature and ambient temperature sensor, IP55T waterproof and dust resistance standard, guide light (EGL) )

ویژگی های کلی

Zoom (equal)
30
Accuracy of reading angles (s)
2
Internal memory (GB)
4
plummet
Laser
keyboard
Numerical letter
Single prism board (m)
3000
Board without charter (m)
500
Battery
Lithium-ion
Device operating system
Windows CE
Compensator
has it
Application
پروژه عمرانی"
Dimensions (cm)
18 * 20 * 36
Weight (kg)
5.5
Direct
Lens diameter (mm)
45
Field of view (at a distance of 100 meters)
1 degree and 30 minutes
Minimum focusing distance (m)
1
Laser class
I and IIIR
Horizontal lamp grading
0.002
Prolongation accuracy with prism (mm)
2 + 2
Prolonged accuracy without prism (mm)
3 + 2
Reflector plate (mm)
3 + 2
