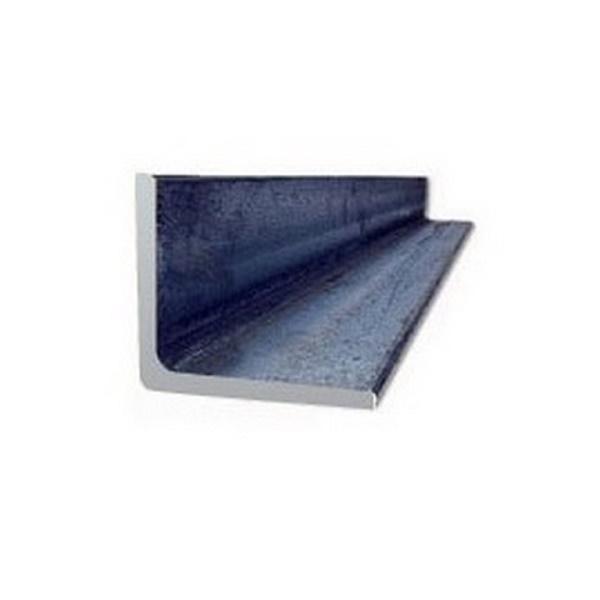

Angle iron 5*30*30 Jahan Foulad
Jahan Foulad
Iran
A corner is a profile whose cross-section is two perpendicular sides. Corner is one of the most important building materials and is used in civil, construction and industrial projects.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Angle iron 5*30*30 Jahan Foulad
Corner is a profile with a cross section that consists of two sides with a certain angle next to each other. The two sides that make up the cross section are called the wings, and in its usual form, the angle between the two wings is 90 degrees.
Corner applications in construction:
- Winding
- Construction of truss
- LSF structures
- Power transmission towers
- Used to connect bridges to columns
- Used to connect beams to load-bearing beams
- Used to connect columns to plates in the foundation
مشخصات ابعاد و وزن
Wing width (mm)
30
Wing thickness (mm)
5
Cross-sectional area (cm2)
2.78
Weight one meter (kg / m)
2.18
Connection angle radius (mm)
5
Wing corner radius (mm)
2.5
Minimum yield stress (N / mm2)
235
Tensile strength (N / mm2)
360-510
Maximum elongation (%)
25
