Water pump DM16 Dieselsaz

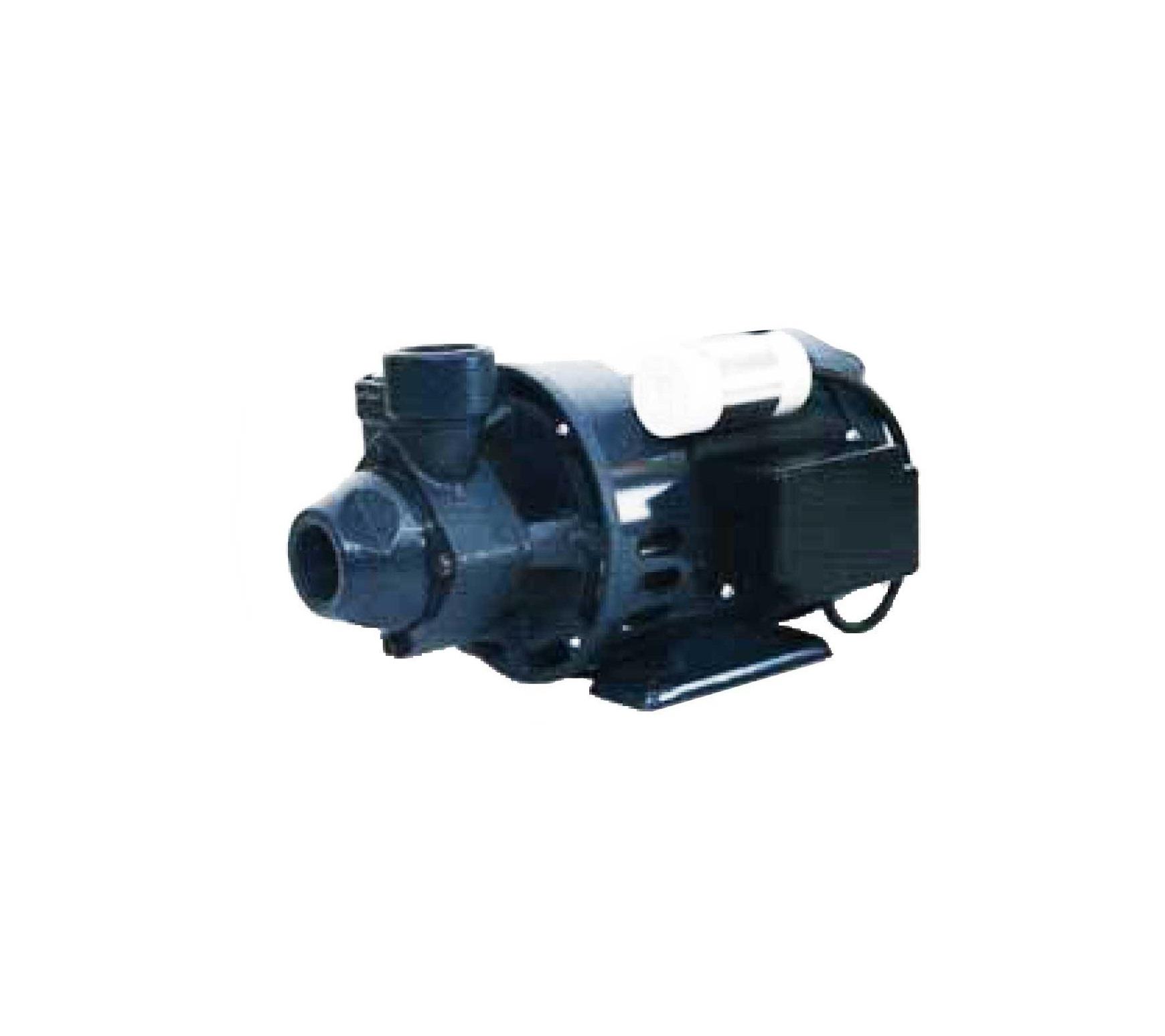

The product is manufactured in partnership with Pentax Italy. This 0.4 horsepower pump with 2850 rpm is capable of delivering water pressure up to a maximum of 40 meters and discharge of 10 to 37 liters per minute. The impeller is made of brass and has a stainless steel shaft and can operate at a fluid temperature of up to 90 ° C. The DM45 water pump has an OVERLOAD thermal thermostat that automatically shuts off the pump if the water becomes too hot or the engine overheats. The DM16 pump is permanently operated (CONTINUOUS DUTY) and capable of long-term operation. This pump is suitable for water supply to villas and apartments up to the fourth floor. One of the important things to increase the life span of all centrifuge electropumps is to install them horizontally and in a fixed location. It is also recommended to use a filter valve at the pump inlet for clear water and a one-way valve at the pump outlet to prevent water from returning to the pump. It is worth noting that all DM16 pump components and spare parts are available and easily replaceable. The DM16 diesel electropump has the highest EU CE standard.

Pump head or pressure:
Pump head or pressure means how high that pump can raise the fluid that is pressurized. Air for centrifugal pumps is in meters or feet and for rotary pumps and positive displacement head in terms of Calculates the bar, PSI, and kPa.

Pump Types:
Water and drainage pumps vary widely in size, size, type and type of impeller and body, performance and application, and range from small linear pumps to large turbine pumps. Contact Rasakala Technical Partners to help you make the best choice. Pumps in general can be said to include dynamic pumps and positive displacements. Positive displacement pumps include rotary and reciprocating pumps and their types are as follows:

The rotary pump includes gear pump, loop pump, vacuum progressive pump, pre-pump, screw pump and blade pump.

The reciprocating pump also includes a floating piston pump and a diaphragm pump.

Rotary pump function:
In rotary pumps, fluid displacement is accomplished by rotating the gear and camshafts or blades.

Reciprocating Pump Performance:
In reciprocating pumps, the energy is transmitted periodically. In these pumps they are also the driving force of most of the electro-motors. A suction cylinder occurs and causes the fluid to suck into the valve. Then, by returning the piston, the fluid that is sucked is directed outward through another valve.
