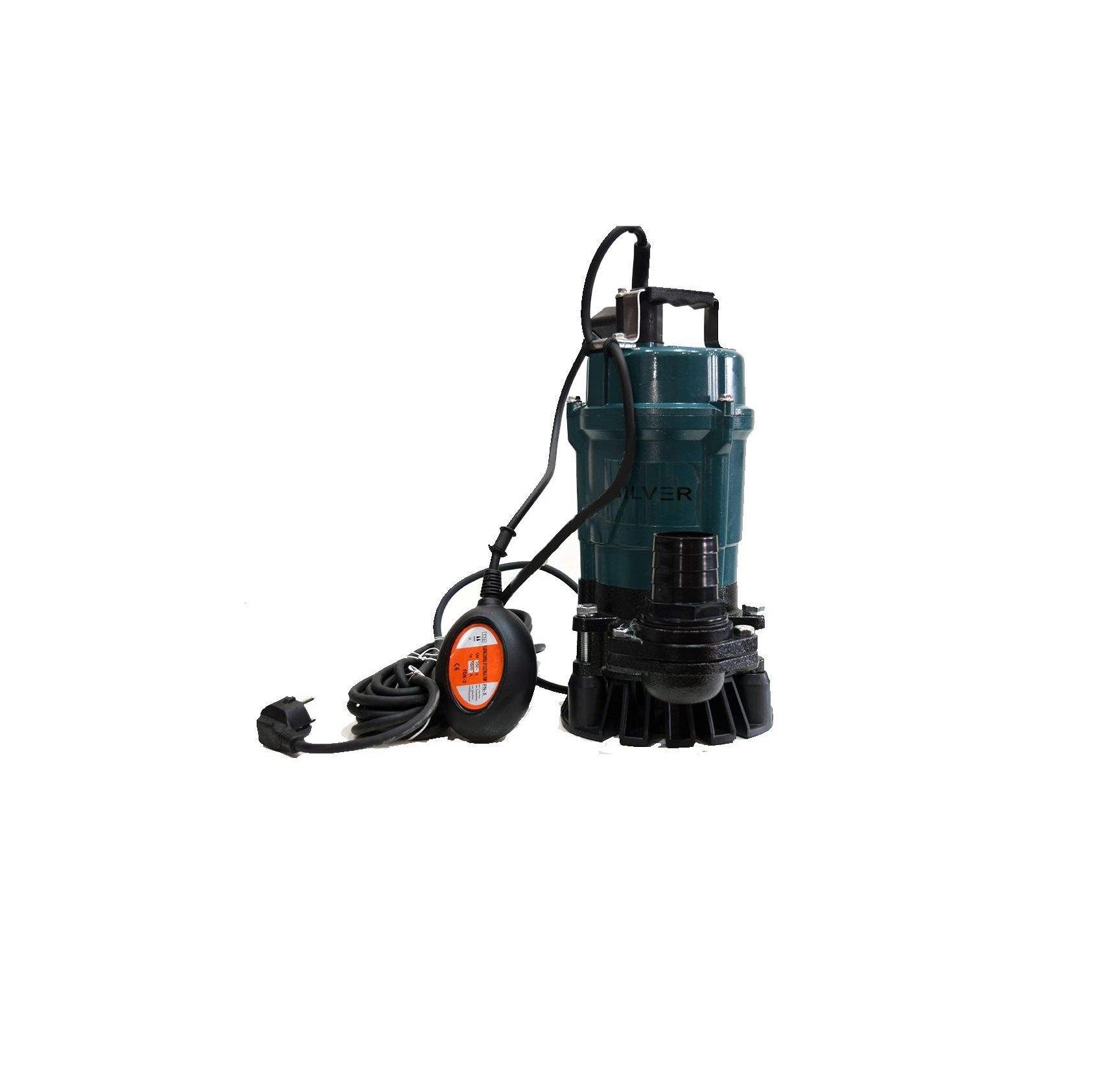

Sewage pumps SHS 2-12-750F Silver

Silver
Iran

The sludge pump is a group of centrifugal or centrifugal pumps and is used to transport and pump liquids with solid and suspended particles such as turbid water and industrial and domestic wastewater. These types of pumps are suitable for pumping liquids containing suspended solids and long fibers, sewage, polluted waters, turbid water, abrasive fluids and so on. Sludge pumps are sometimes referred to as concentrated pumps, sewage pumps, slurry or slurry pumps and mud pumps.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Sewage pumps SHS 2-12-750F Silver

Submersible and dry sludge pump:
The sludge pump is produced in both dry and submerged types. The submersible sludge pump is manufactured with an outlet of 1.5 inches to 20 inches. Each submerged sludge pump is also used in both fixed and removable installation. This type of sludge pump has IP68 protection and can be fully immersed in the fluid. Passing fluid around the electromotor, which is fully sealed, will cool the electromotor and thus increase its service life as well as decrease the motor current efficiency.
In the dry sludge pump, the electromotor is at the desired height outside the fluid, and the pump is immersed in the fluid. The two are connected through a coupling so that the electromotor can be easily separated if needed.

The most important parameters in selecting a suitable sludge pump are pump discharge, pump head, pump circumference, pump outlet diameter as well as the material used in the electro pump. The above sludge has a 1-horsepower engine that can launch water up to a nominal height of 12 m vertical and a useful height of 10 m vertical. Suitable for discharging contaminated water into the outlet of this 2-inch sludge outlet, the pipe is 6cm in diameter and also has a metal-like hose that, unlike plastic, has a much longer life and durability. The float has an automatic float which automatically shuts off the float if water volume drops to prevent damage to the propeller. The length of the cable is 10 meters.

Product Specifications

Weight (kg)
15
Fluid type
مواد شیمیایی"
Outlet pipe diameter (inch)
2
Maximum pumping height (m)
12
Dimensions (cm)
16 * 13 * 35
Application
آبیاری
Ability to immerse
has it
Maximum immersion depth (m)
12
Maximum discharge (m2 / h)
12
Material of butterfly
Rice
Shaft material
Steel
Power (W)
750
Engine power range (W)
500-1000
Engine type
Electric
Voltage (V)
220
Number of phases
single phase
Shell material
aluminium
Basic material
Cast iron
Power cable length (m)
10
