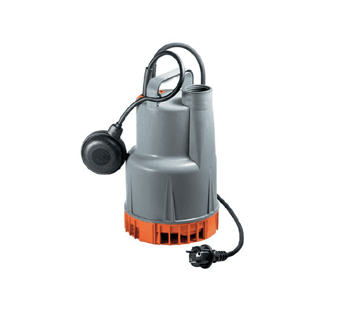

Submersible Pump DG Pentax

Pentax
Italy

The EPS pump is structurally similar to vertical turbine pumps. Basically, an electric motor drives the pump and increases the kinetic energy of the fluid. The pump housing consists of a centrifugal pump with a vertical shaft whose output fluid pressure depends on the impeller rotation. Pumps use mechanical sealing to prevent water from penetrating the engine. The motor shell and pump are made of aluminum alloy and impeller and the pump cap is made of ductile cast iron and stainless steel; and all screws are made of stainless steel, which increases its corrosion resistance by several times. If more than one impeller is used at the pump, the multi-stage flap pump is said to have the blades either mounted on a shaft or separate.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Submersible Pump DG Pentax

Single stage pump:
-Suitable for water pumping, household use, small irrigation
- Drawing and pumping
-In industries like pumping slurry
Drainage of wells and reservoirs and floors of pools
-Walls and drainage in buildings, industrial waters, greenhouses, farms, gardens

Multistage Pump:
Because these types of pumps are capable of operating in different flow rates and depths, deep wells are commonly used to pump water and oil.

Functional Pump Tips:
- Fill the specified area on the pump with water before starting the pump.
- Ensure that the voltage is sufficient when the shaft pump and sludge pump is running.
- Single stage pumps are suitable for wells up to12 inches in diameter.
- The motor dynamo is cooled by the fluid being pumped at the pump and sludge pumps.
- To find the right type of slurry pump and sludge pump, look at the diagram of the head and the discharge pump to find the right pump.

Product Specifications

Type of electricity consumed
single phase
Body Material
Cast iron
Dubai (m3h)
24
Head (m)
10
Fluid temperature range (C °)
0 to 40
Maximum immersion depth (m)
5
Power (W)
1000-1350
Insulation class
F
Degree of protection
IP68
Material of butterfly
stainless steel
Mechanical flood
Mechanical double seal (in pump and motor)
Shaft material
stainless steel
