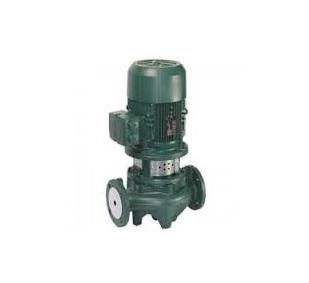

Linear circulator water pump CM-G 100-660 T DAB
DAB
Iran
The DM CM-G 100-660 T linear circulator water pump is a water pump with a linear centrifugal impeller that is used in heating systems, hot water for indoor use, and water circulation.
In a linear circulator water pump, the body of the water pump is made of cast iron and its impeller is determined based on the application and type of pump. Its impeller shaft is covered with stainless steel.
Its flange is PN16 and its mechanical flood is carbon / ceramic. This water pump is three-phase and its motor is asynchronous with external ventilation..
In a linear circulator water pump, the body of the water pump is made of cast iron and its impeller is determined based on the application and type of pump. Its impeller shaft is covered with stainless steel.
Its flange is PN16 and its mechanical flood is carbon / ceramic. This water pump is three-phase and its motor is asynchronous with external ventilation..
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Linear circulator water pump CM-G 100-660 T DAB
Attributes :
Failure to transfer fluid heat to the electric motorDab water pump is a product of Dab company in Italy.Replacement of standard electric motors during service and repairsIts engine protection rating is IP 55 and its insulation class is f.It has IE2 electric motor with lower energy consumption and higher efficiency and is coupled by standard coupling.The operating range of the Dubai pump is 6.8 to 25.9 GPM and covers up to 22 feet.With the ability to separate the electric motor from the pump, its service and maintenance are simple, fast and safe.The maximum ambient temperature for working with this water pump is 40. C and the maximum pressure is 10 PN for DN 40 - DN 50 models and 16 PN for other models.The range of liquid temperature used by this water pump is from -10 to 130. C for DN 40 - DN 50 models and from -10 to 140. C for other models.The liquid used in this pump is clean water, free of solids or abrasives, non-sticky, non-corrosive, non-crystalline and chemically neutral with properties similar to water (its maximum glycol is 30%).
Product Specifications
Electric motor power (HP)
2
Dubai (GPM)

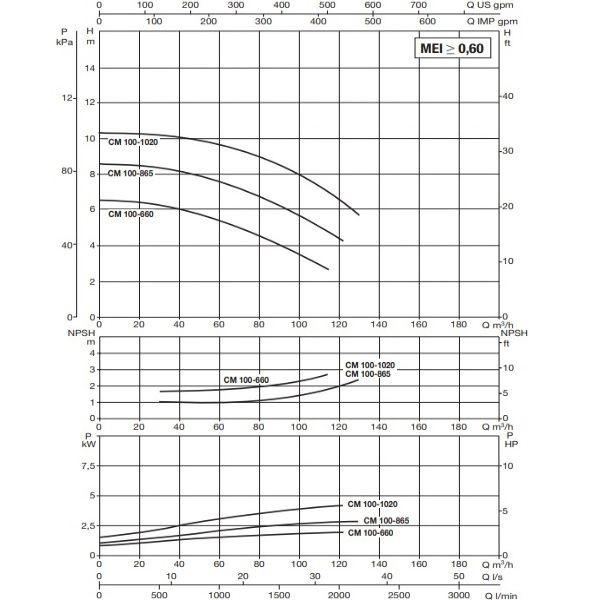

6.8 to 25.9
Head (Ft)
22
Power consumption (HZ – Ф– V)
50-3-380
Shaft material
Steel
Material of butterfly
Technopolymer
Body Material
Cast iron
Penetration class
IP55
