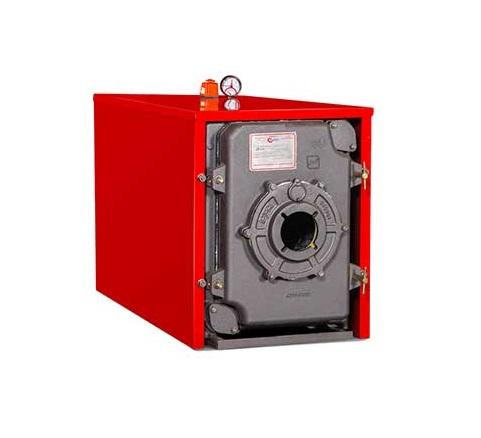

Cast Iron Boiler Super 300 Chauffage Kar

Chauffage Kar
Iran

The Super 300 cast iron cast iron boiler with 5 blades is very suitable for use in small and medium buildings with its high thermal efficiency and small dimensions.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Cast Iron Boiler Super 300 Chauffage Kar

The above boilers are produced as blades (4 to 9 blades) and in addition to city gas, they can also work with diesel fuel.Click on the specifications on this page to view more information on how to buy a Super 300 radiator cast iron boiler.The maximum working pressure in the super 300 cast iron cast iron boiler is 4 times and the maximum working temperature in these boilers is 105 degrees Celsius.The super 300 cast iron cast iron boiler has mandatory standards 4472 and 4473, European CE standard certification, ISO 9001: 2008 quality management certificate from the Swiss company SGS.The heating power of Super 300 radiator cast iron boilers is suitable for small buildings with a useful area of ​​up to 600 square meters, and if several Super 300 cast iron cast iron boilers are installed, the exploited area can be increased.Super 300 boilers take up little space in the engine room, and through single-coil and double-walled sources with two-coil sources, the cycle can be easily coupled with a solar collector. Due to the shape of the combustion chamber and the smoke passages, this boiler is compatible with all burners with the appropriate heat capacity.Obviously, installing multiple Super 300 boilers can increase the area used. Also, the idea of ​​installing several boilers is itself one of the principles of energy optimization and always consumes less fuel than a large boiler.The operation of this boiler is guaranteed for 10 years, and this warranty is unconditional if installed correctly, and the damaged blades are replaced.Super 300 cast iron cast iron boilers are made of fire-resistant cast iron alloy in the form of separate blades and are resistant to oxidation and chemical factors affecting the surface, as well as environmental factors such as air humidity and combustion condensate. are.The supercharged cast iron boilers of the Super 300 model have high thermal conductivity because the body of these boilers is covered with 5 mm thick cast iron by prominent fins, which increases the mechanical strength of the boiler as well as increases the heat level and ultimately increases the transfer efficiency. The heat is in the boiler, the working pressure of the boiler for use in the engine room is equal to 4 atmospheres, which is suitable for use in the engine room of buildings up to 10 floors.

Product Specifications

Number of blades
5
Boiler dewatering volume (lit)
22.3
Boiler dimensions (mm)
682 * 443 * 758
Boiler weight (kg)
205
Maximum allowable working pressure (bar)
4
Torch mouthpiece diameter (mm)
110
Boiler chimney opening diameter (mm)
144
Heating power (KW)
50.8
Heating power (kcal / hr)
700"
Heating power (btu / hr)
000"
Combustion chamber volume (m3)
0.0403
Size of boiler inlet and outlet connections (DN)
"""1/2 2"
Maximum allowable operating temperature (C °)
105
