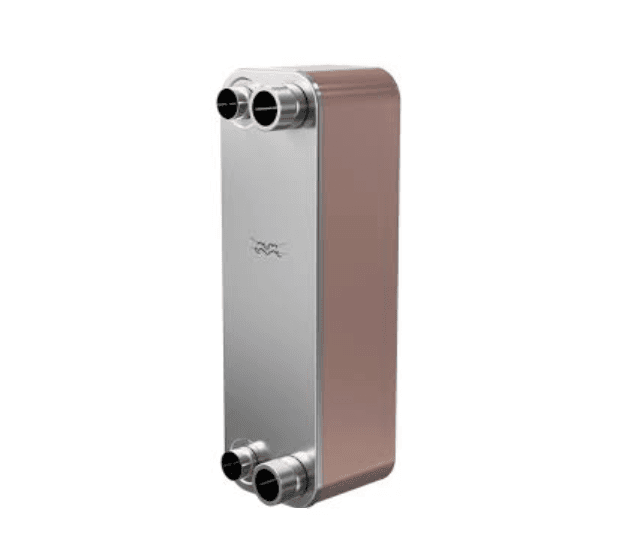

Alfalaval CB30-34H plate heat exchanger with working pressure of at least 15 times and a maximum of 40 times (different working pressure in different models) and with very high efficiency, provides immediate and hygienic hot water consumption with the lowest cost and without wasting energy. Seems. Keep in mind that if you use a heat exchanger to produce a sanitary hot spring for residential units, 300 to 400 liters of converter capacity is required for each unit.
Also, in case of using Alfalaval CB30-34H plate heat exchanger in underfloor heating systems for each meter of PEX pipe length worked in the floor, about 136 kcal heating capacity should be considered for selecting the required heat exchanger.
The Alfalaval CB30-34H plate heat exchanger can be used for liquid-to-liquid, steam-to-liquid and gas-to-liquid systems, and is very small compared to its high operating efficiency and takes up little space.

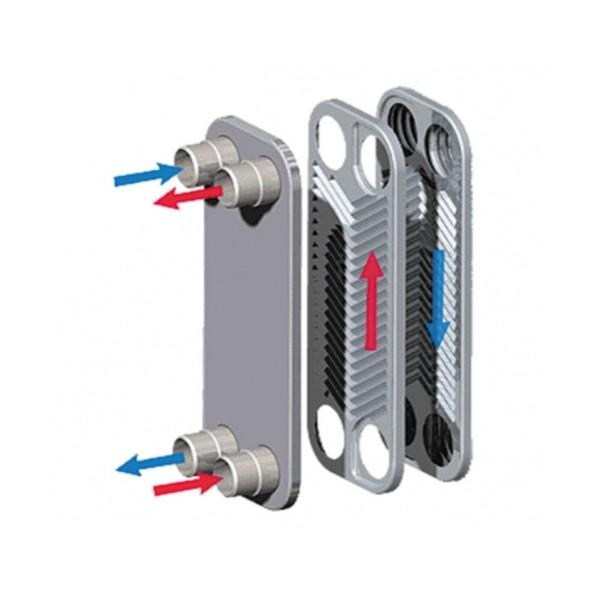

The design of the CB30-34H Alphalawal plate heat exchanger plates is such that by optimizing the fluids, it optimizes heat transfer and makes the converter self-cleaning.
Welding of CB30-34H alpha-wave plate heat exchanger plates is performed in vacuum conditions, which makes it strong in high pressure and operating temperature, and also provides the possibility of connecting two balanced plates in thousands of points and significantly increases the efficiency of converter performance.
All sheets of Alfalawal plate heat exchangers are made of stainless steel (SS316), and in Alfalaval converters, the models that start with CB indicate Copper Brazed plate heat exchangers.
The quality and efficiency of Alfalawal plate heat exchangers is such that 65% of the market share of the world's thermal plate heat exchangers is monopolized by Alfalaval Company.
The alpha-plate plate heat exchanger model required for special conditions is calculated based on the type of fluids involved in the process, pressure and temperature of both sides and the flow rate of the fluid used, through CAS software of Alfalaval company and if necessary, technical specifications of the process with Alfa Laval Is available.
Alfalawal Co. is the exclusive manufacturer of Alfa Nova Ab-branded Steel Converters (AN), which are used for special purposes that require the use of all-steel materials in the equipment used in the manufacturing process.
