Thermal converter HP-200 Hepaco

Hepaco
Iran

With an efficiency of more than 95%, the Hepaco HP-200 plate heat exchanger provides instant and hygienic hot water at the lowest cost and without wasting energy.
If you use a heat exchanger to produce a sanitary spa, consider the capacity of the heat exchanger for each unit is 300 to 400 liters per hour.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

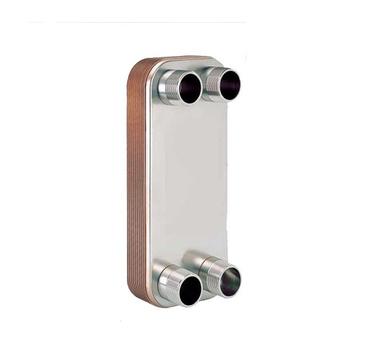

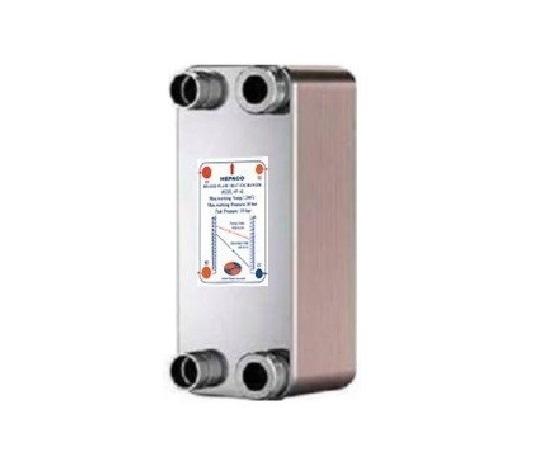

Thermal converter HP-200 Hepaco

Attributes :

Very long life
Easy and cheap installation
Easy to maintain and easy to use and does not take up much space in the engine room
Hepaco plate heat exchangers can have very high heat transfer coefficients, very small dimensions, efficiency and high heat transfer coefficient compared to other types of common heat exchangers (such as shell and tube exchangers, double-walled sources, coil sources) due to their general coefficient. Provide instant, fast, and completely hygienic (all surfaces of Hepaco heat exchangers are 316 stainless steel) hot water.
Save up to 40% on energy consumption due to no need to store consumer hot water (eliminate energy losses and prevent contamination of hot water)
The use of anti-fouling equipment (magnetic or electric) for heat exchangers is not recommended at all.
Hepaco plate heat exchangers are of integrated type and water to water, water to gas, steam to water, oil to water, etc.
In order to maximize the efficiency of Hepaco plate heat exchangers, it is recommended to use two fluid flows in parallel and in opposite directions (Counter Flow).
It is important to pay attention to the heat capacity of the hot water or hot water boiler in the use and selection of the heat exchanger in order to have access to a sufficient amount of hot water to exchange heat.
The maximum working pressure of Hepaco plate heat exchangers is 30 bar.
The use of steam up to 3bar pressure is allowed as a fluid carrying thermal energy in integrated integrated heat exchangers.
It is interesting to know that Hepaco plate heat exchangers in water-to-water type have a heat transfer coefficient of 5000W / m2cº, while double-walled sources have a heat transfer coefficient of 500w / m2cº and coiled hot springs have a heat transfer coefficient of 1250 W / M2Cº. And ... is.
Also, if Hepaco plate heat exchangers are used in underfloor heating systems for each meter of PEX pipe length used in the floor, about 136 kcal of heating capacity should be considered for selecting the required heat exchanger.
Therefore, Hepaco plate heat exchangers with small dimensions, low weight and high efficiency, reasonable price have a very good performance efficiency.
Hepaco heat exchangers in more than 20 models and capacities are always ready for delivery in hot water supply applications, pool and Jacuzzi heat load supply, building heat supply (floor heating) and all industrial uses.
The Hepaco HP-200 plate heat exchanger, with its special arrangement and creating a completely "turbulent" sinusoidal flow in the water with minimal pressure drop, provides maximum heat load capacity and has a very low sedimentation coefficient compared to all common heat exchangers. .

Kcal / Hr
000"

Product Specifications

Maximum operating pressure (bar)
30
Dimensions (mm)
66.6 * 106 * 306
Material
Stainless Steel 316
Water consumption (Lit / hr) at t = 50 ° C 50
2000
Weight (kg)
4.7
Boiler inlet and outlet pipe size (in)
"¼ ""1"
Water inlet and outlet pipe size (in)
1
